9844

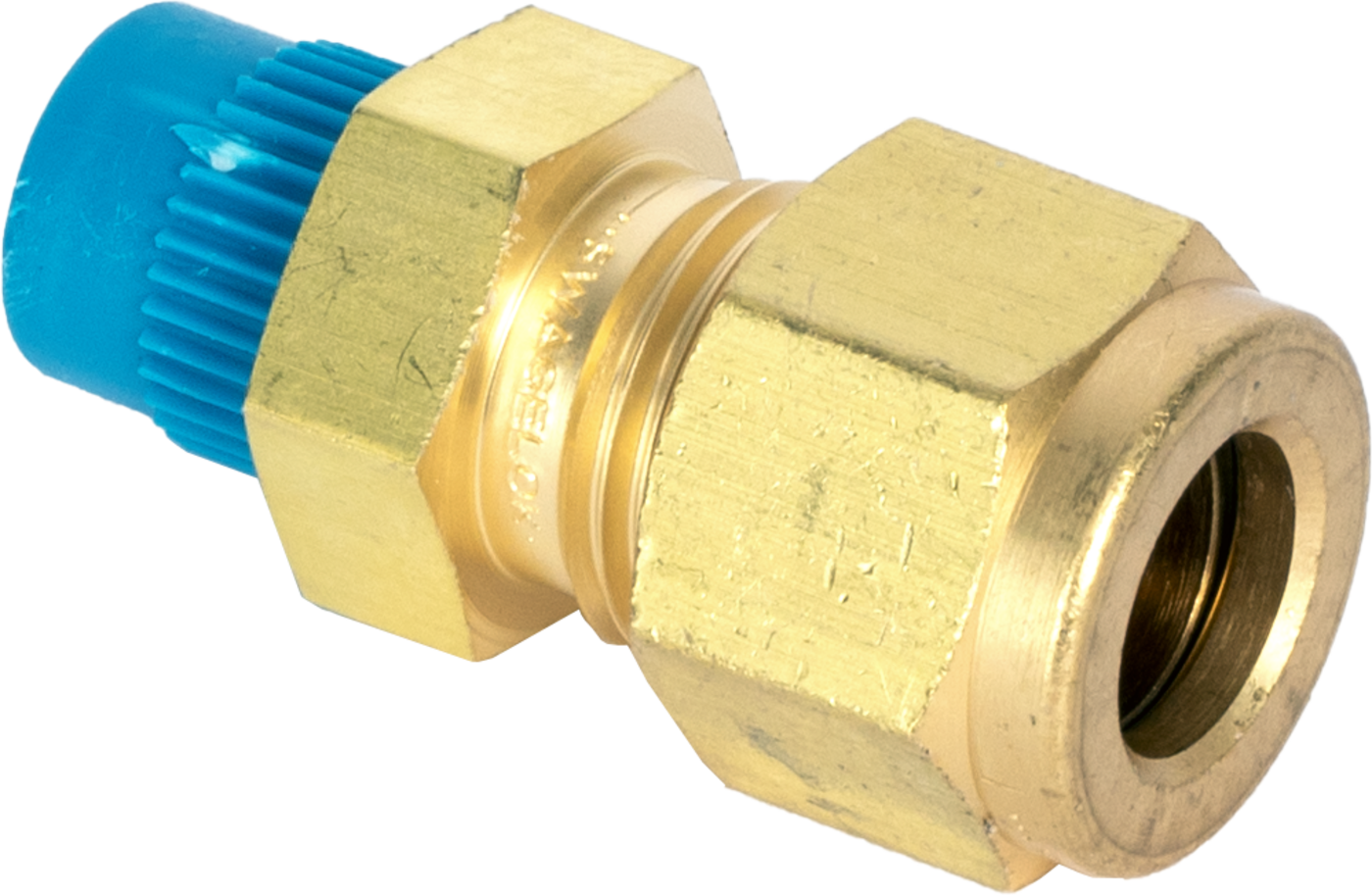

3/8 in. x 1/8 in. Orifice Line Connection Fitting
9844
Orderable3/8 in. x 1/8 in. Orifice Line Connection Fitting
Overview
The 9844 is the replacement Swagelok fitting (B-600-1-2) to connect the orifice line to the LevelVue™B10 Water-Level Continuous Flow Bubbler.
Technical Description
The 9844 is a Swagelok B-600-1-2 fitting with a 3/8 in. compression fitting on one end and 1/8 in. NPT male threads on the other end. The 1/8 in. NP threads into the base of the bubbler and connects the line with the Swagelok fitting end.
Specifications
- Outer Diameter
- 0.953 cm
(0.375 in.)
- Dimensions
- 3.56 x 1.91 x 1.91 cm
(1.4 x 0.75 x 0.75 in.)
- Weight
- 45.36 g
(0.1 lb)
