39308
Stainless-Steel Tower Mounting Kit for AeroX Stream 200
39308
OrderableStainless-Steel Tower Mounting Kit for AeroX Stream 200
Overview

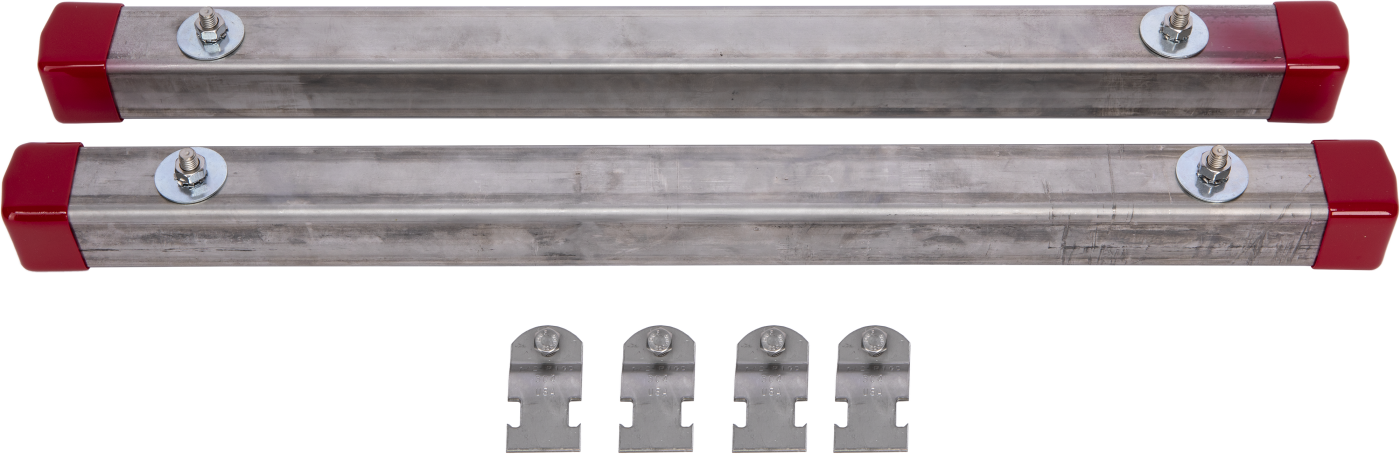

The 39308 is the tower mounting kit used to attach the AeroX™Stream 200 AWOS Field-Ready System to a Millard frangible tower. The kit comprises two 609.6 mm (24.0 in.) stainless-steel brackets for mounting the AeroX Stream 200 to a Millard tower or similar lattice-style tower with 12.7 mm (0.5 in.) diameter pipe. It is constructed of a Unistrut profile with stainless-steel clamps. The struts have M8 threaded studs and come with all the necessary hardware to mount the AeroX Stream 200 to the tower.
Note: Other clamp sizes can be used if needed, as long as they will fit the Unistrut.
Specifications
- Dimensions
- 61.85 x 9.02 x 6.35 cm
(24.35 x 3.55 x 2.5 in.)
- Weight
- 3.61 kg
(7.95 lb)
