36433
Replacement CR350 Left Connector
36433
OrderableReplacement CR350 Left Connector
Overview

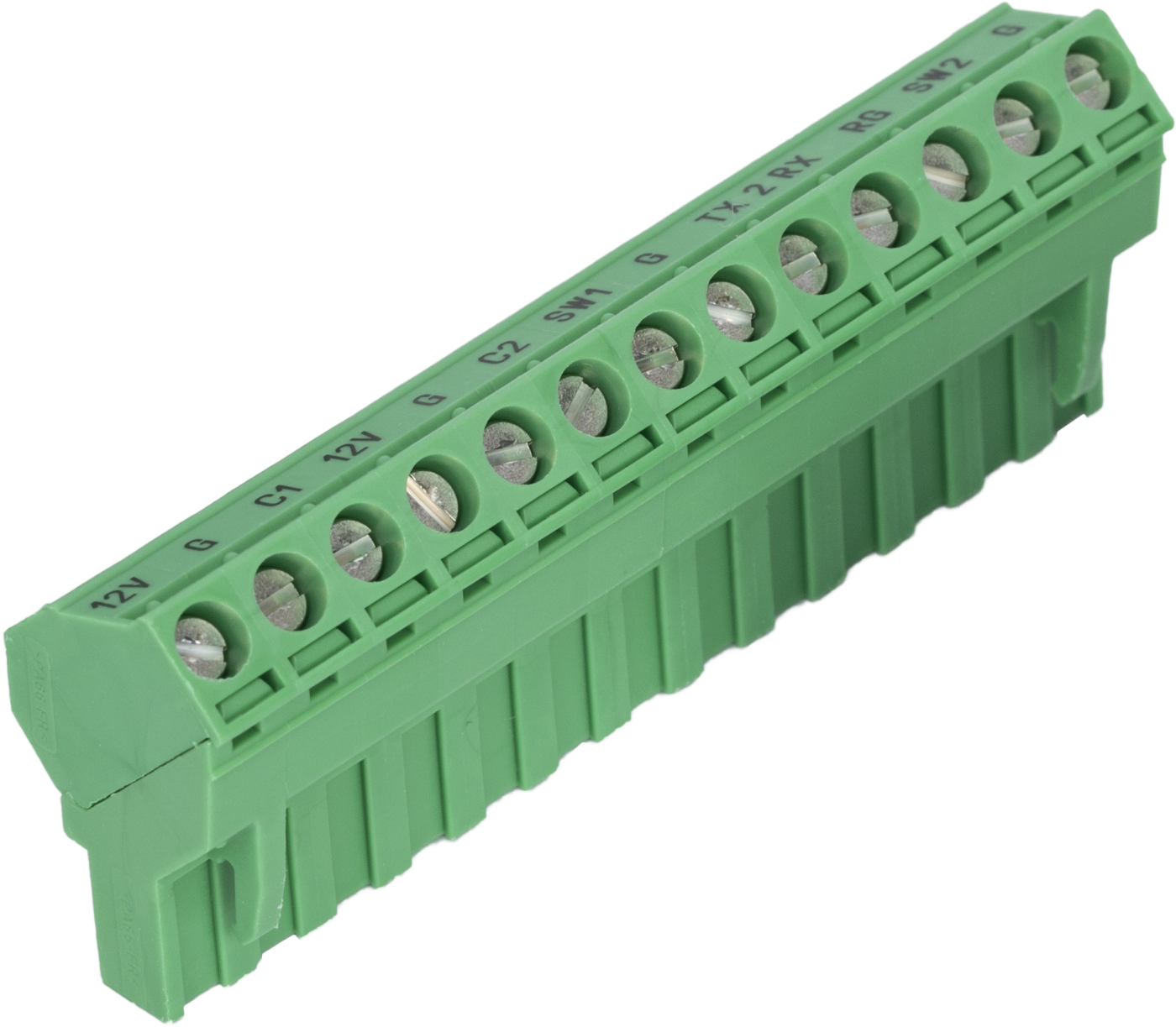

The 36433 connector is the left-most sensor/com connector on the CR350 datalogger. This green, removable connector provides screw terminals for connecting smart sensors on COM2 and connecting SDI-12 sensors on COM1, as well as connecting control wires and a 12 V power supply. The 36433 may be purchased to replace a lost or damaged connector.
Specifications
- Pitch
- 0.508 cm
(0.2 in.)
- Wire Entry
- 13-pin angled wire entry
- Dimensions
- 6.73 x 2.54 x 1.65 cm
(2.65 x 1.0 x 0.65 in.)
- Weight
- 22.68 g
(0.05 lb)
