Replacement Power Supply Unit for SkyVue 8/M
36219

36219

Orderable

Replacement Power Supply Unit for SkyVue 8/M

Pricing

Request a quote Have pricing access? Sign in

Model:
36219
Item Number:
36219

Overview

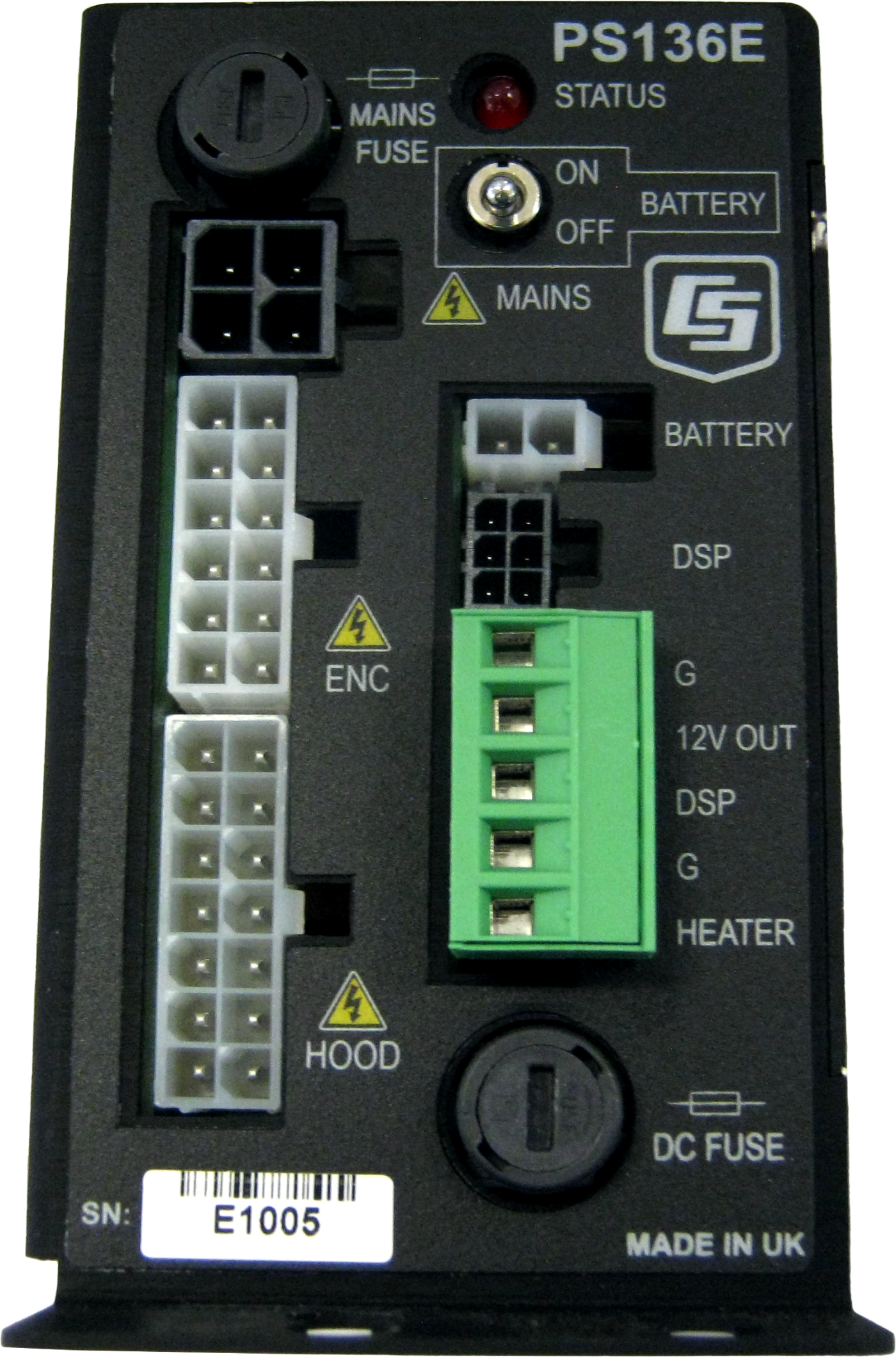

The 36219 is a replacement power supply unit specifically designed for use with the SkyVue™8M Tactical LIDAR Ceilometer and the SkyVue™8 LIDAR Ceilometer . It connects to the existing cables in the ceilometer to provide 12 to 24 Vdc to the DSP, internal heaters, external heaters, and blower through separate connectors.

Specifications

Operating Temperature Range
-40° to +60°C
Relative Humidity Range
0 to 100%
Input Voltage
10 to 40 Vdc
Input Current at Maximum Power
9 A

(at 12 Vdc)

4.5 A

(at 24 Vdc)

DSP Fuse
HBC 5A (T) 5 x 20 mm

(0.2 x 0.8 in.) slow blow

PSU Fuse
HBC 5A (T) 5 x 20 mm

(0.2 x 0.8 in.) slow blow

Dimensions
30.5 x 15.2 x 10.2 cm

(12.0 x 6.0 x 4.0 in.)

Weight
725.7 g

(1.6 lb)
