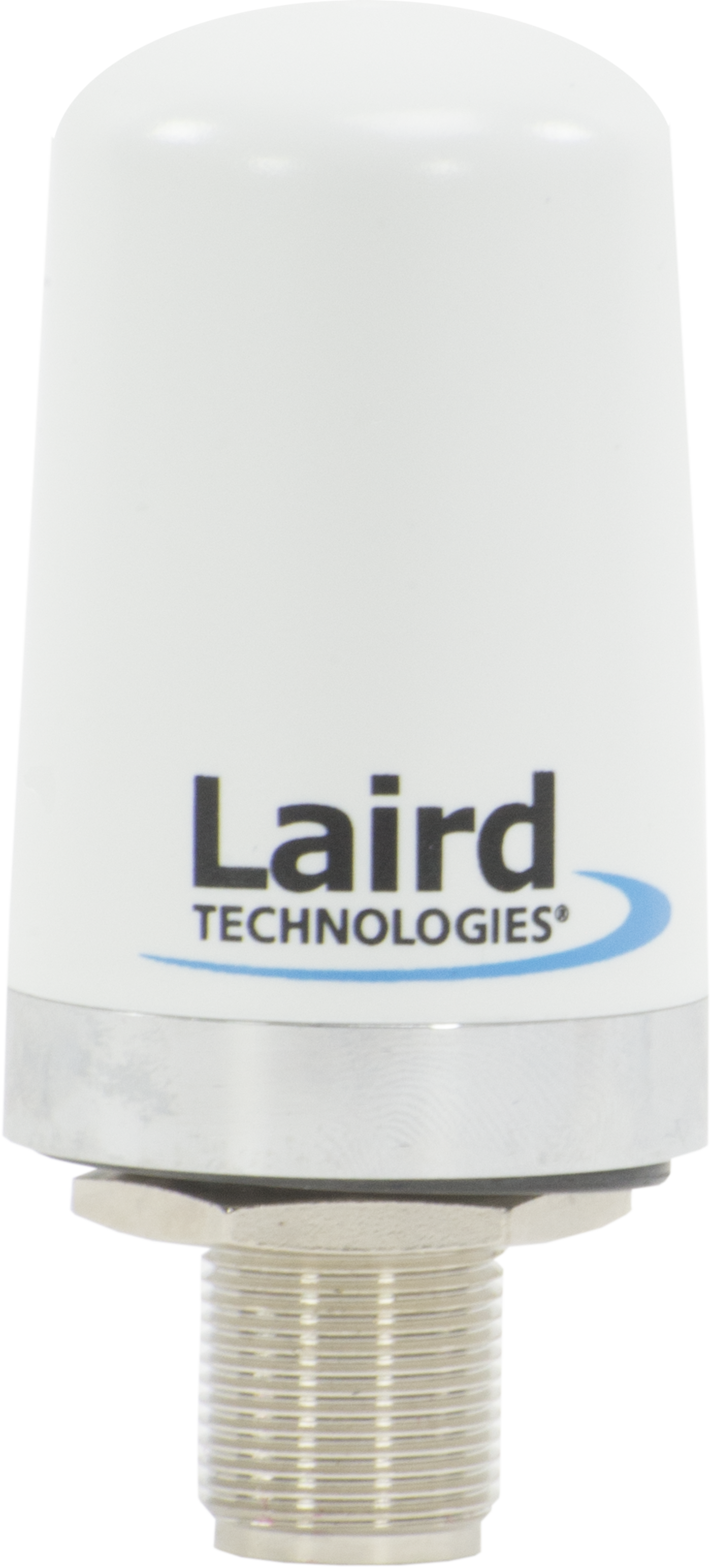

Orderable2 dBd 4G/3G Multiband Omnidirectional Antenna
Overview
The 32261 is an omnidirectional antenna ideally suited for use with 4G and 3G cellular gateways. The antenna has an N type (female) threaded permanent stud for easy mounting through an enclosure wall. This antenna does not include mast mounting hardware. It is intended to be purchased as a replacement part for the 32262 or to be bulkhead mounted through an enclosure wall. A metal ground plane should be provided to the antenna either by bulkhead mounting it through a metal enclosure or with the addition of a metal plate when mounting in a non-metallic enclosure. A coaxial cable, sold separately, is required to connect this antenna to the inline surge suppression or radio antenna jack.
Specifications
- Antenna Type
- Omnidirectional, multiband
- Use
- 4G/3G cellular, outdoor or indoor, fixed location or mobile
- Frequency Range
- 698 to 960 MHz, 1710 to 2700 MHz
- Nominal Peak Gain
- 1.4 dBd
(@ 698 to 960 MHz)
- Nominal Peak Gain
- 3.3 dBd
(@ 1710 to 1990 MHz)
- Nominal Peak Gain
- 2.4 dBd
(@ 2100 to 2700 MHz)
- VSWR
- < 2.5:1
- Radome Material
- High Heat ABS
- Polarization
- Vertical
- Impedance
- 50 ohm
- Maximum Input Power
- 100 W
- Input Connection
- Type N, threaded, female
- Operating Temperature
- -40° to +85°C
- Dimensions
- 8.38 x 3.66 cm
(3.3 x 1.44 in.)
