OrderableSurge Protection Kit, Type N to TNC, 700 to 2700 MHz
Overview

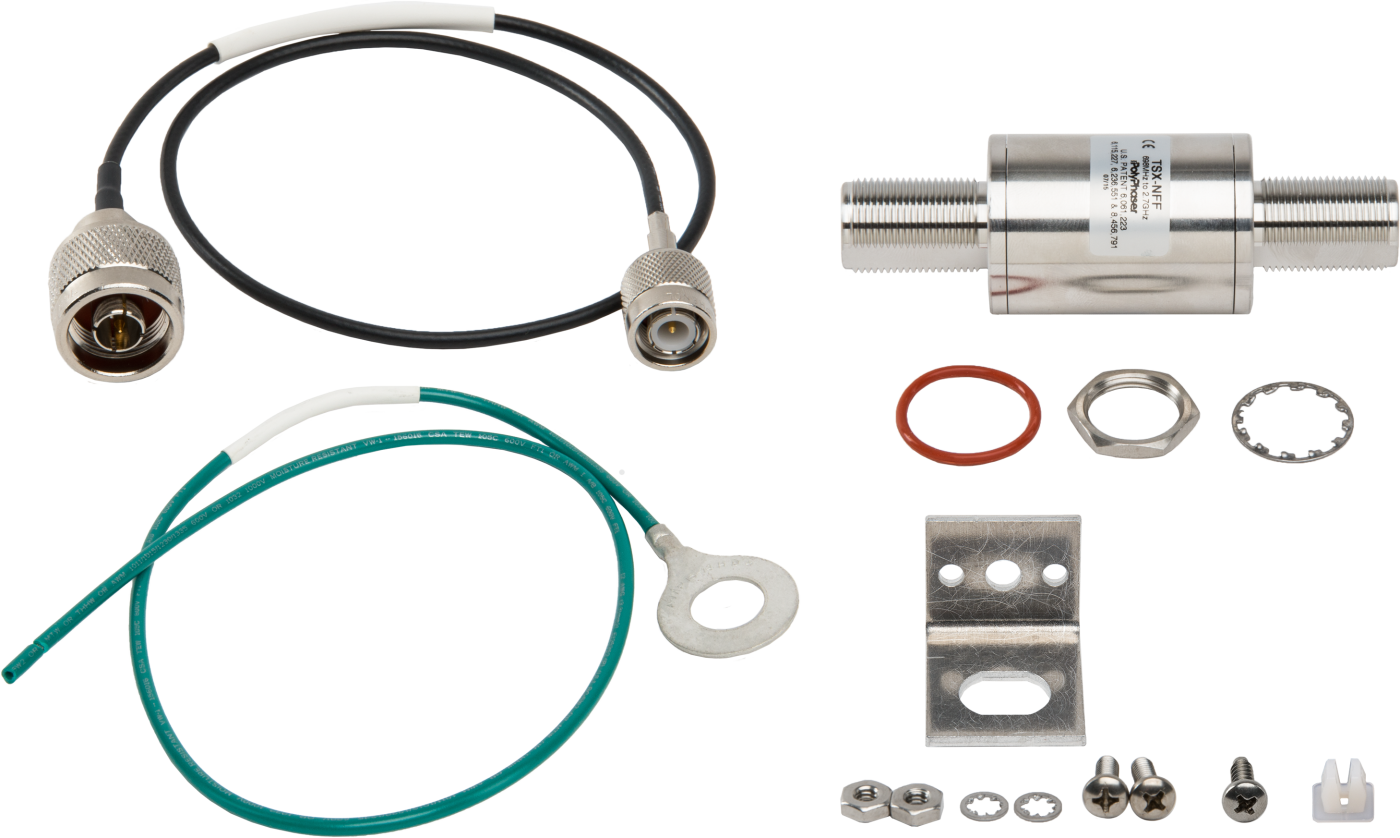

The 31323 is an RF surge protection kit with flange mounting bracket. It may be flange-mounted to an enclosure backplate or bulkhead-mounted through an enclosure wall. One side of the surge protector connects to a radio with a TNC antenna connection. The other side connects to an antenna/antenna coaxial cable with TNC connector. This kit includes:
- Bi-directional coaxial RF protector with hardware, suitable for 700 to 2700 MHz
- Flange mounting bracket
- 18 in. Type N to TNC coaxial jumper
- 24 in.ground wire assembly
Benefits
- Superior coil inductor surge performance design
- Weatherproof when installed
Specifications
Coaxial Jumper
- Connector 1
- Type N plug
- Connector 2
- TNC plug
- Cable
- RG174/U
- Length
- 45.7 cm
(18 in.)
Surge
- Frequency
- 700 to 2700 MHz
- Connectors
- Type N jack
- Mounting
- Bulkhead mount
- Operation
- DC block
(RF only)
Bi-directional(Connectors are not antenna/radio specific.)
- Insertion Loss
- < 0.1 dB
- Maximum Surge
- IEC 61000-4-5 8/20 μs waveform40 kA
(max)
20 kA(multiple)
- Temperature
- -50° to +85°C
- Materials
- Tri-plated brass body, PTFE dielectric, tri-metal center pins, SS 5/8-24 hex nut, SS 5/8 lock washer, silicon O-ring
- Standards
- CE compliant, RoHS compliant, IEC 60529 IP67, Bellcore #TA-NWT-000487
- Body Diameter
- 3.0 cm
(1.18 in.)
- Type N Connector Length
- 2.41 cm
(0.95 in.)
- Total Length
- 9.17 cm
(3.16 in.)
Flange Mount
- Material
- Aluminum with stainless-steel screws, nuts, and washers
- Dimensions
- 3.81 x 2.54 x 2.85 cm
(1.5 x 1.0 x 1.12 in.)
Ground Wire
- Wire Type
- 12 AWG stranded with PVC jacket
- Connector
- 5/8 crimp ring lug, soldered
- Length
- 61 cm
(24 in.)
Replacement Parts
(5)43529
Surge Suppressor Flange Mounting Bracket
The 43529 is a bulkhead-to-flange-mount adapter that can be used to mount our RF surge and bulkhead fitting products to an enclosure backplate.
Orderable14464
Nylon Grommet for #10 Screw
The 14464 is a one-piece, non-corrosive nylon, self-retaining blind screw receptacle. It snaps into the square holes punched into our enclosure backplates. It accepts a #10 screw.
Orderable31325
RG174 Antenna Cable, Type N Pin (Male) to TNC Pin (Male)
The 31325 is an 18 in. RG174/U coaxial cable jumper. One end is fitted with a straight TNC plug connector. The other end is fitted with a straight Type N plug connector.
Orderable15763
Screw #10-16 x .625 Pan Phillips Self-Threading Type BSS
The 15763 is a thread-forming screw.
Orderable29553
Surge Suppressor, Type N Socket (Female), Bulkhead Mounting Grounding Cable
The 29553 is a ground lug and wire assembly used to ground our RF surge and bulkhead fitting products. The 24 in., 12 AWG, stranded wire is terminated on one end with a 5/8 in. ring lug. The lug is positioned between the RF connector and the enclosure wall, or the lug is secured using the nut and lock washer supplied with the RF connector.
Orderable
Ships With
(5)29553
Surge Suppressor, Type N Socket (Female), Bulkhead Mounting Grounding Cable
Orderable31325
RG174 Antenna Cable, Type N Pin (Male) to TNC Pin (Male)
Orderable43529
Surge Suppressor Flange Mounting Bracket
Orderable14464
Nylon Grommet for #10 Screw
Orderable15763
Screw #10-16 x .625 Pan Phillips Self-Threading Type BSS
Orderable
Similar Products
(6)31314
Surge Protection Kit, Type N to RPSMA, 700 to 2700 MHz
Orderable31317
Surge Protection Kit, Type N to SMA, 700 to 2700 MHz
Orderable31320
Surge Protection Kit, Type N to N, 700 to 2700 MHz
Orderable31326
Surge Protection Kit, GPS Antenna Type N to SMA
Orderable31329
Surge Protection Kit, Type N to N, 100 to 512 MHz
Orderable31332
Surge Protection Kit, Type N to BNC, 100 to 512 MHz
Orderable
Compatibility
The 31323 is compatible with the Hughes9502 Inmarsat BGAN Satellite IP Terminal.
