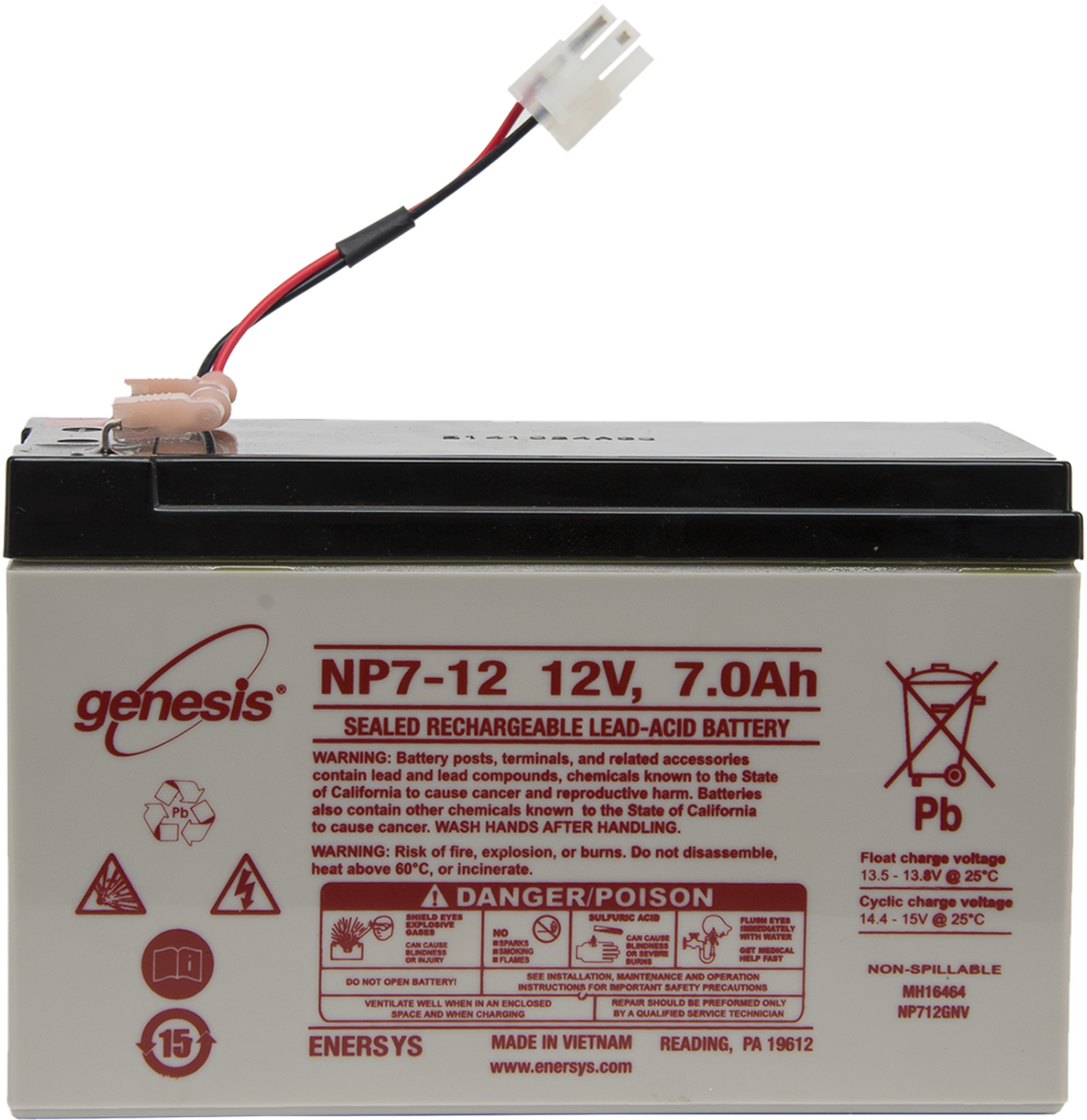

Orderable12 V 7 Ah Sealed Rechargeable Battery for CRVW3
Overview
The 30162 is the internal 7 Ah sealed rechargeable battery contained in the CRVW3 Vibrating Wire Datalogger when the -RC power supply option is selected. This battery is available as an upgrade from the Battery Pack with 8 Alkaline D Cells (pn 30160) or as a replacement part. When the 30162 is ordered, the 4.5 in. cable is included to connect the battery to the CRVW3.
Specifications
- Cable Length
- 11.43 cm
(4.5 in.)
- Dimensions
- 15.24 x 6.35 x 10.16 cm
(6.0 x 2.5 x 4.0 in.)
- Weight
- 2.36 kg
(5.2 lb)
Replacement Parts
(2)6053
12 V Lead-Acid Battery with Bare Terminals
The 6053 provides only the 7 Ah sealed rechargeable battery; connectors and mounts are not included.
Orderable43116
CRVW3 Rechargeable Battery Power Cable
The 43116 cable connects the 7 Ah sealed rechargeable battery contained in the CRVW3 to the battery plug on the CRVW3. Because the 43116 is fitted with slip-on connectors that attach to the battery posts, it can be disconnected and replaced. The battery cable is 4.5 in. long.
