25600

The 25600 control terminal connector is shipped attached to our CR6-series dataloggers. This lockable connector provides screw terminals for connecting digital sensor, general I/O, and control wires to the CR6. The 25600 may be purchased to replace a lost or damaged control terminal connector.

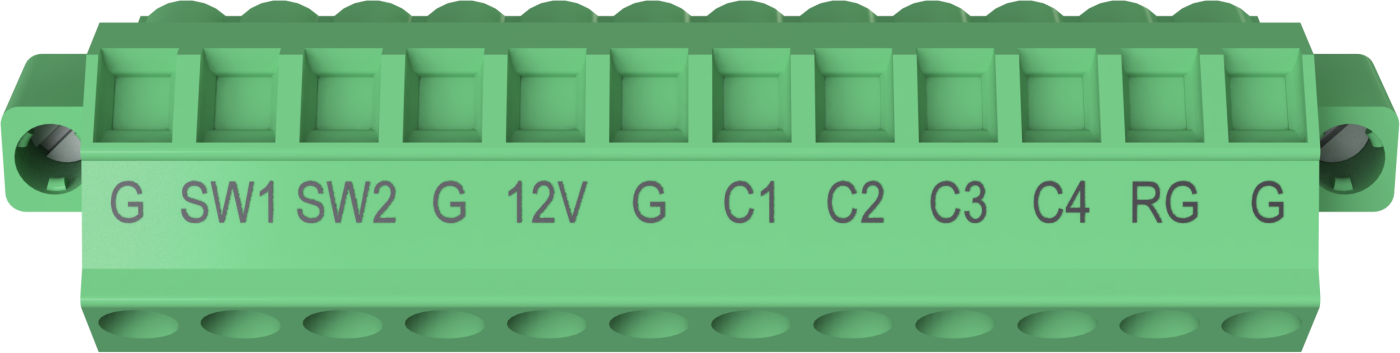

The CR6 lockable terminal plug has 12 screw terminals with gold-plated connections and 5.08 mm (0.2 in.) pitch. The 25600 accepts wire sizes from 12 to 30 AWG.
