Enclosures / Prewired Enclosures

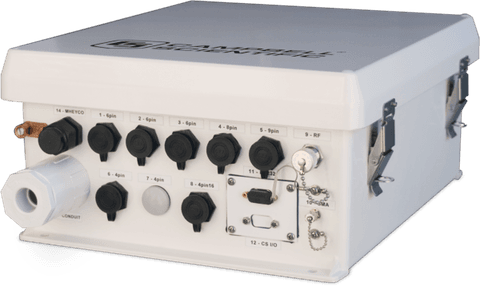

Prewired Enclosures

Product Line

Construction Enclosure Classification Dimensions Weight

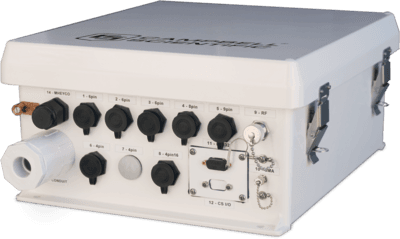

PWENC12/14

Fiberglass-reinforced polyester enclosure with door gasket, external grounding lug, stainless-steel hinge, and lockable hasps NEMA 4X (before being modified for cable entry)
  • 35.6 x 30.5 x 14 cm (14 x 12 x 5.5 in.) internal
  • 33.5 x 28.3 x 17.6 cm (13.2 x 11.2 x 6.9 in.) internal under the lid space
  • 39.1 x 34 x 19.5 cm (15.4 x 13.4 x 7.7 in.) external
 5 kg (11.2 lb)

PWENC14/16

Fiberglass-reinforced polyester enclosure with door gasket, external grounding lug, stainless-steel hinge, and lockable hasps NEMA 4X (before being modified for cable entry)
  • 35.6 x 40.6 x 14 cm (14 x 16 x 5.5 in.) internal
  • 38.6 x 33.7 x 17.6 cm (15.2 x 13.3 x 6.9 in.) internal under the lid space
  • 44.3 x 39.2 x 19.6 cm (17.8 x 15.4 x 7.7 in.) external
 6 kg (13 lb)

PWENC16/18

Fiberglass-reinforced polyester enclosure with door gasket, external grounding lug, stainless-steel hinge, and lockable hasps NEMA 4X (before being modified for cable entry)
  • 45.7 x 40.6 x 22.9 cm (18 x 16 x 9 in.) internal
  • 43.8 x 38.7 x 25.2 cm (17.3 x 15.3 x 9.9 in.) internal under the lid space
  • 49.5 x 44.4 x 27 cm (19.5 x 17.5 x 10.6 in.) external
 7.7 kg (17 lb)
