DIN Rail Terminal Kits Connect your sensor to a data logger or other peripheral more easily

DIN Rail Products / DIN Rail Terminal Kits

About DIN Rail Terminal Kits

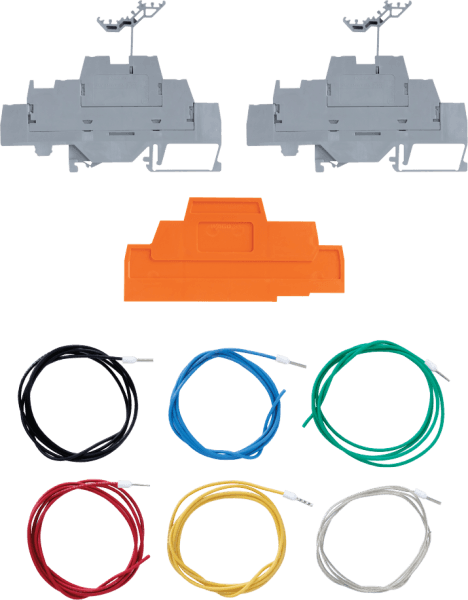

DIN rail terminal kits provide the needed DIN rail terminals, separator, and wires to connect the terminals of a sensor to a data logger or other peripheral. The color-coding of these wires matches the wire coloring of the sensor for ease in connection, maintenance, and troubleshooting.

Product Line
Documents

Product Line

	Terminal Connector(s) Included	Insulator Included	Color-Coded Wires Included

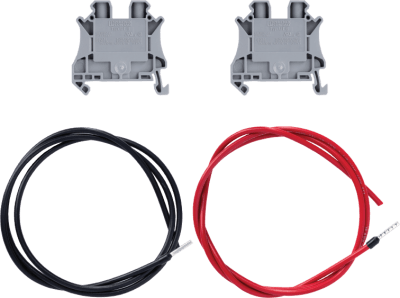

39107 DIN Rail Terminal Kit with 2 Terminals and 2 Wires	Two DIN Rail Mountable 2-Wire 8.2 mm Screw Connector (pn 27480)	One	16 AWG black 16 AWG red

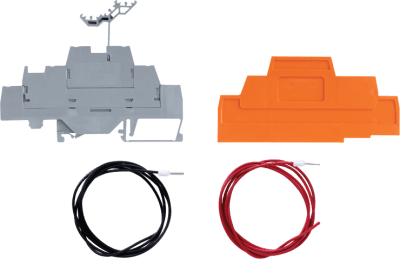

39108 DIN Rail Terminal Kit with 1 Terminal and 2 Wires	One DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Red

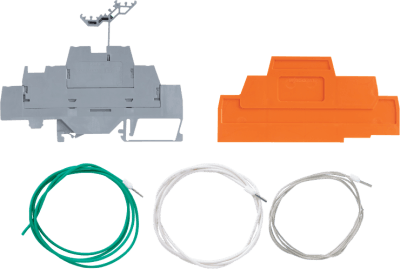

39109 DIN Rail Terminal Kit with 1 Terminal and 3 Wires	One DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Green White Clear

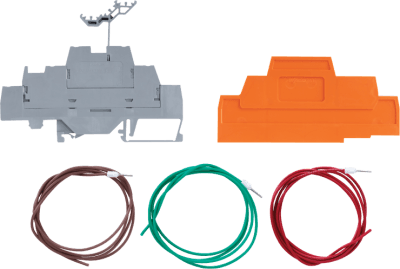

39110 DIN Rail Terminal Kit with 1 Terminal and 3 Wires	One DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Brown Green Red

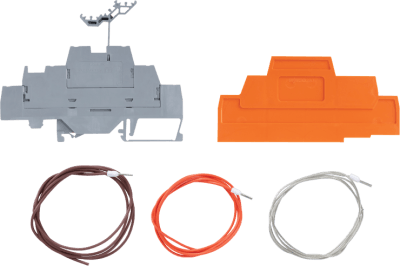

39111 DIN Rail Terminal Kit with 1 Terminal and 3 Wires	One DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Brown Orange Clear

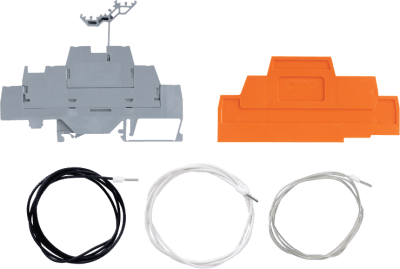

39112 DIN Rail Terminal Kit with 1 Terminal and 3 Wires	One DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black White Clear

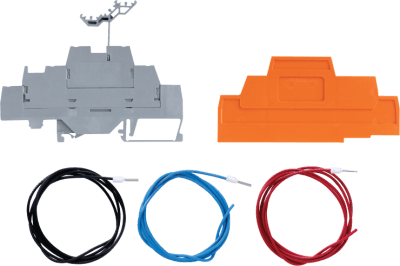

39113 DIN Rail Terminal Kit with 1 Terminal and 3 Wires	One DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Light blue Red

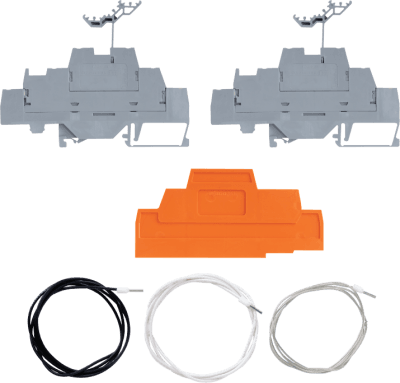

39114 DIN Rail Terminal Kit with 2 Terminals and 3 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black White Clear

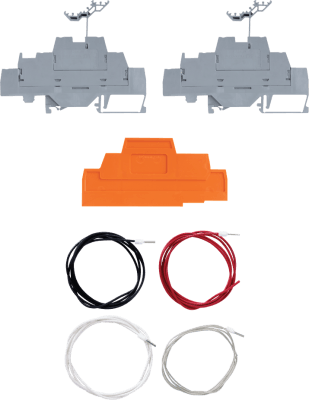

39115 DIN Rail Terminal Kit with 2 Terminals and 4 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Red White Clear

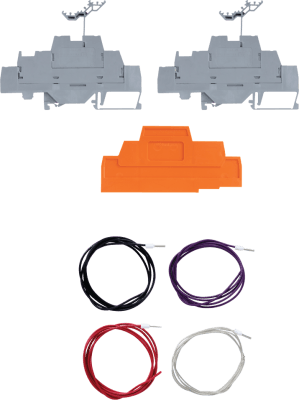

39116 DIN Rail Terminal Kit with 2 Terminals and 4 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Purple Red Clear

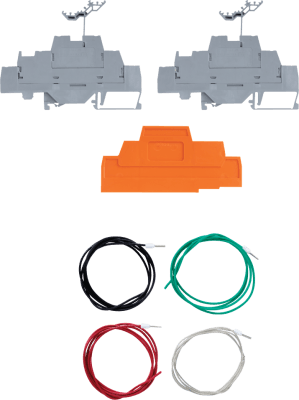

39117 DIN Rail Terminal Kit with 2 Terminals and 4 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Green Red Clear

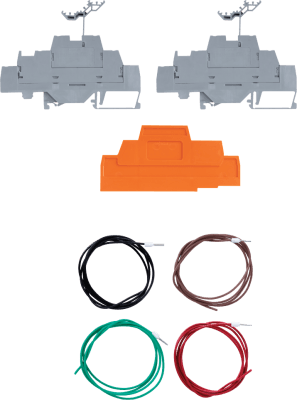

39118 DIN Rail Terminal Kit with 2 Terminals and 4 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Brown Green Red

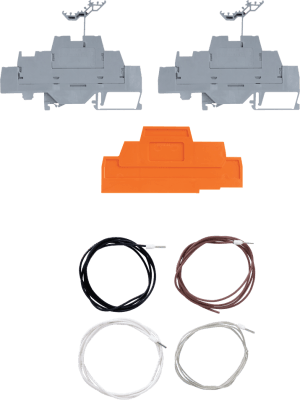

39119 DIN Rail Terminal Kit with 2 Terminals and 4 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Brown White Clear

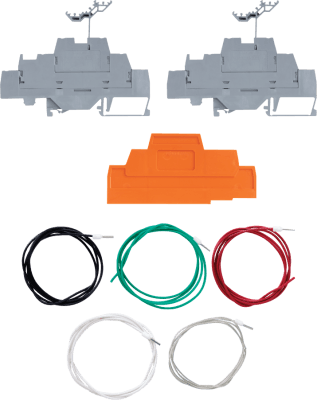

39120 DIN Rail Terminal Kit with 2 Terminals and 5 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Green Red White Clear

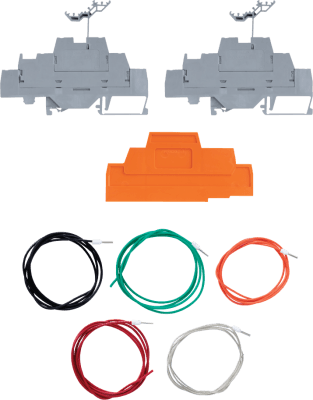

39121 DIN Rail Terminal Kit with 2 Terminals and 5 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Green Orange Red Clear

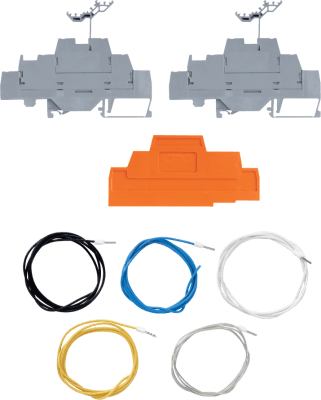

39122 DIN Rail Terminal Kit with 2 Terminals and 5 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Light blue White Yellow Clear

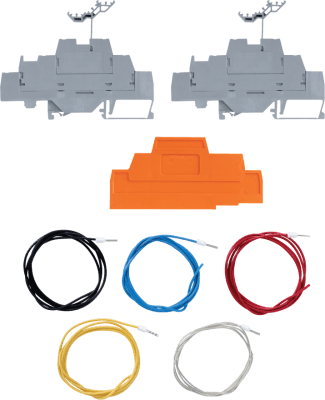

39123 DIN Rail Terminal Kit with 2 Terminals and 5 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Light blue Red Yellow Clear

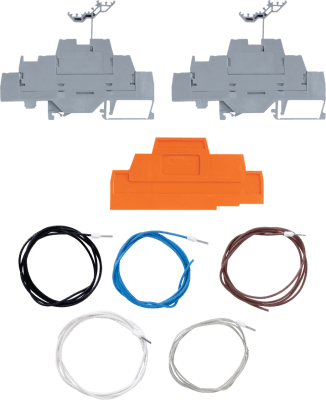

39124 DIN Rail Terminal Kit with 2 Terminals and 5 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Light blue Brown White Clear

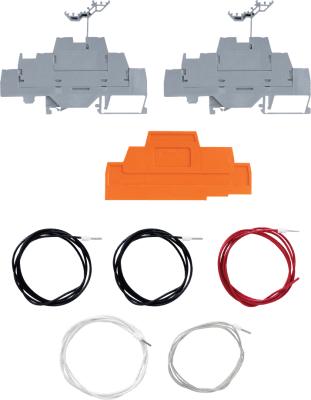

39125 DIN Rail Terminal Kit with 2 Terminals and 5 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black (quantity of 2) Red White Clear

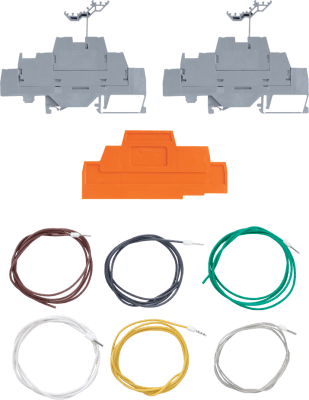

39126 DIN Rail Terminal Kit with 2 Terminals and 6 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Brown Gray Green White Yellow Clear

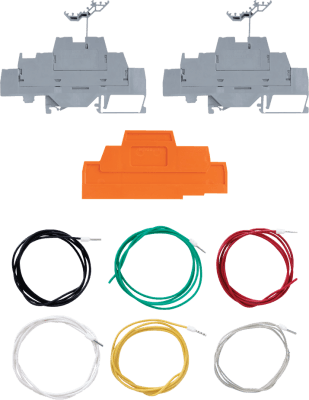

39127 DIN Rail Terminal Kit with 2 Terminals and 6 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Green Red White Yellow Clear

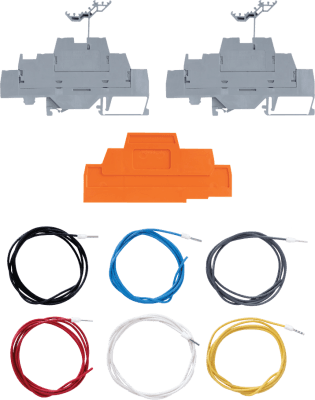

39128 DIN Rail Terminal Kit with 2 Terminals and 6 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Light blue Gray Red White Yellow

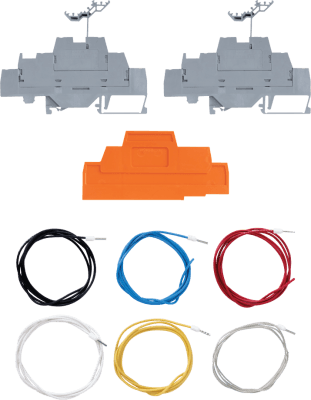

39129 DIN Rail Terminal Kit with 2 Terminals and 6 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Light blue Red White Yellow Clear
39130 DIN Rail Terminal Kit with 2 Terminals and 6 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Light blue Green Red Yellow Clear

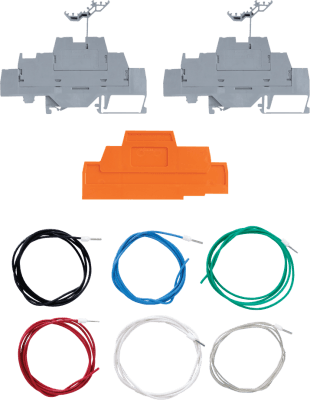

39131 DIN Rail Terminal Kit with 2 Terminals and 6 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Light blue Green Red White Clear

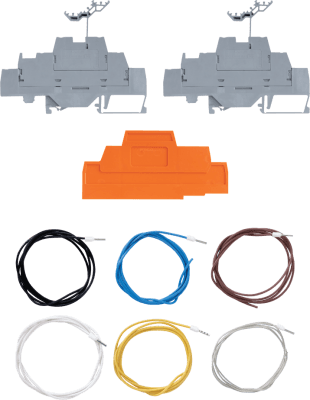

39132 DIN Rail Terminal Kit with 2 Terminals and 6 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Light blue Brown White Yellow Clear

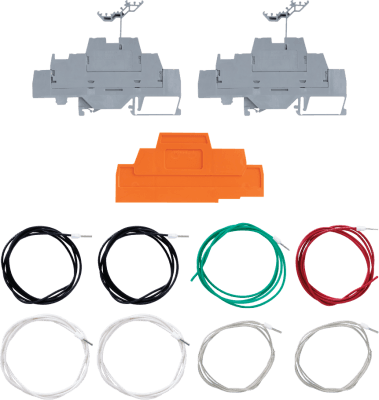

39133 DIN Rail Terminal Kit with 2 Terminals and 8 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black (quantity of 2) Green Red White (quantity of 2) Clear (quantity of 2)

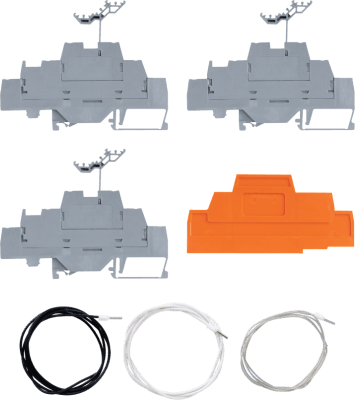

39134 DIN Rail Terminal Kit with 3 Terminals and 3 Wires	Three DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black White Clear

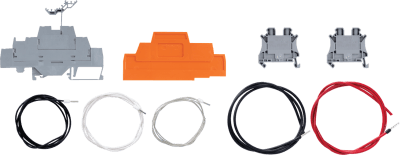

39598 DIN Rail Terminal Kit with 3 Terminals and 5 Wires	One DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329) Two DIN Rail Mountable 2-Wire 8.2 mm Screw Connector (pn 27480)	One	22 AWG black 22 AWG white 22 AWG clear 16 AWG black 16 AWG red

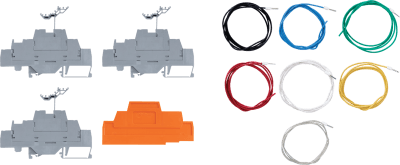

39135 DIN Rail Terminal Kit with 3 Terminals and 7 Wires	Three DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Light blue Green Red White Yellow Clear

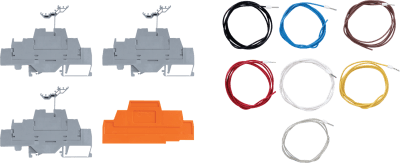

39136 DIN Rail Terminal Kit with 3 Terminals and 7 Wires	Three DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Light blue Brown Red White Yellow Clear

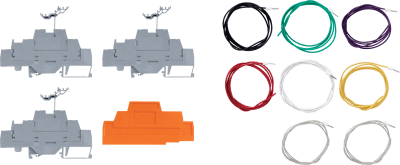

39137 DIN Rail Terminal Kit with 3 Terminals and 8 Wires	Three DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Green Purple Red White Yellow Clear (quantity of 2)

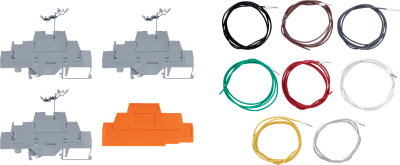

39138 DIN Rail Terminal Kit with 3 Terminals and 8 Wires	Three DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Brown Gray Green Red White Yellow Clear

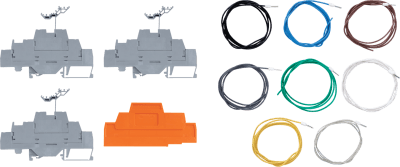

39139 DIN Rail Terminal Kit with 3 Terminals and 8 Wires	Three DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Light blue Brown Gray Green White Yellow Clear

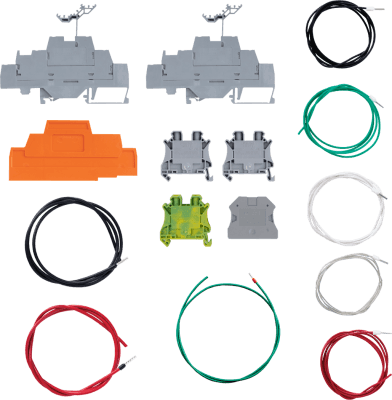

39801 DIN Rail Terminal Kit with 5 Terminals and 8 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329) Two DIN Rail Mountable 2-Wire 8.2 mm Screw Connector (pn 27480) One DIN Rail Mountable 2-Wire 8.2 mm Grounded Screw Connector (pn 27481)	One	Black (quantity of 2) Green (quantity of 2) Red (quantity of 2) White Clear

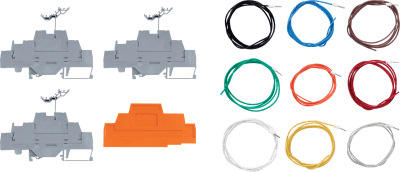

39140 DIN Rail Terminal Kit with 3 Terminals and 9 Wires	Three DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Light blue Brown Green Orange Red White Yellow Clear

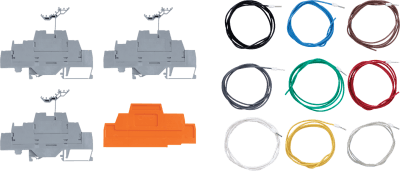

39141 DIN Rail Terminal Kit with 3 Terminals and 9 Wires	Three DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Light blue Brown Gray Green Red White Yellow Clear

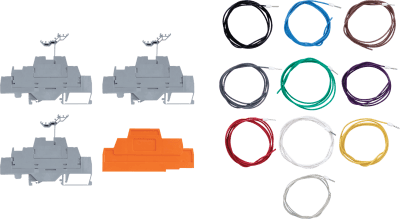

39142 DIN Rail Terminal Kit with 3 Terminals and 10 Wires	ThreeDIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Light blue Brown Gray Green Purple Red White Yellow Clear

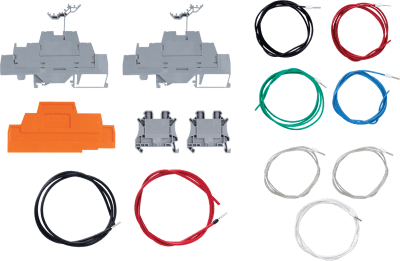

39802 DIN Rail Terminal Kit with 4 Terminals and 9 Wires	Two DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329) Two DIN Rail Mountable 2-Wire 8.2 mm Screw Connector (pn 27480)	One	Black Red Green Light blue Clear (quantity of 2) White 16 AWG black 16 AWG red

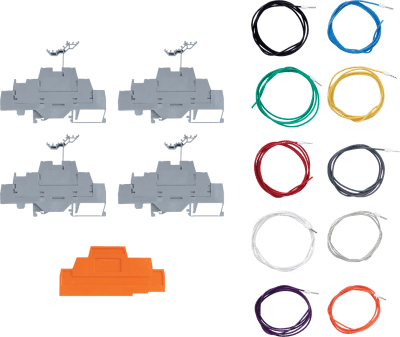

39143 DIN Rail Terminal Kit with 4 Terminals and 10 Wires	Four DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Light blue Green Yellow Red Gray White Clear Purple Orange

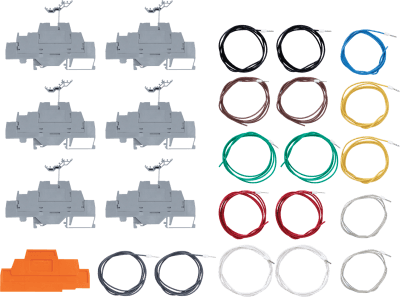

39144 DIN Rail Terminal Kit with 6 Terminals and 17 Wires	Six DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black (quantity of 2) Light blue Brown (quantity of 2) Yellow (quantity of 2) Green (quantity of 2) Red (quantity of 2) Clear (quantity of 2) Gray (quantity of 2) White (quantity of 2)

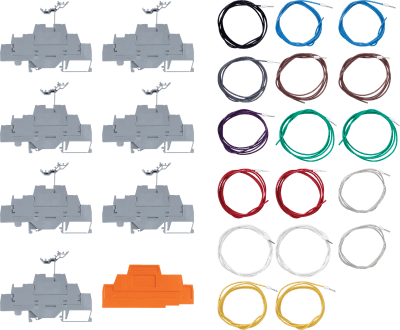

39145 DIN Rail Terminal Kit with 7 Terminals and 17 Wires	Seven DIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Connector (pn 21329)	One	Black Light blue (quantity of 2) Gray Brown (quantity of 2) Purple Green (quantity of 2) Red (quantity of 2) Clear (quantity of 2) White (quantity of 2) Yellow (quantity of 2)
