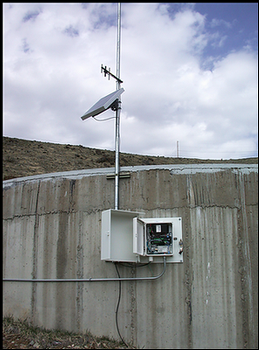

The Mantua monitoring and control system consists of 4 monitoring sites and a base station. Monitoring occurs at 2 water tanks, a vault, and a pump house. The system uses CR510 and CR10X dataloggers for measurement and control. Measured parameters include pressure and water level. A weather station at one site also measures rainfall, wind speed and direction, and temperature.

The system calls designated people using a voice modem to report any communication failures, sensor failures, intrusion incidents, and other problems. Narrow band Freewave radios are used for communication between monitoring sites and the base station. All monitoring sites can be viewed and controlled from the base station.

We're active on Social Media!
Stay informed with our latest updates by following us on these platforms:

Case Study Summary

Application

Monitoring the infrastructure of a public water supply system

Location

Mantua, UT USA

Products Used

CR510  CR10X  RF450

Participating Organizations

Town of Mantua

Measured Parameters

Water level, water pressure, precipitation, wind speed, wind direction, temperature
