Current Products

014A-L 3-Cup Anemometer

The 014A, manufactured by Met One, is a three-cup anemometer that monitors wind speed for the range of 0 to 45 m/s with a threshold...

27106T-L Vertical Propeller Anemometer

The 27106T Vertical Propeller Anemometer is a low threshold precision air velocity sensor that is especially suited for monitoring the vertical wind component. It connects...

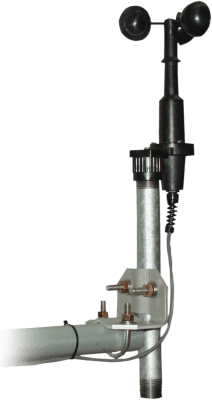

03101-L Wind Sentry Anemometer

The 03101 is the three-cup anemometer included with our Wind Sentry Sets. It can be purchased separately for applications that require only wind speed measurements....

03301-L Wind Sentry Vane

The 03301, manufacted by R. M. Young, is the wind vane included with our Wind Sentry Sets (03002, 03001). Although some customers have valid applications...

024A-L Wind Direction Sensor

The 024A, manufactured by Met One, is a wind vane that measures wind direction only. It can be used in tandem with the 014A Wind...

A100LK-L Vector Anemometer

The A100LK is an anemometer for general meteorology and for wind-energy surveys. Its low power consumption and wide power-supply range make it popular for remote...

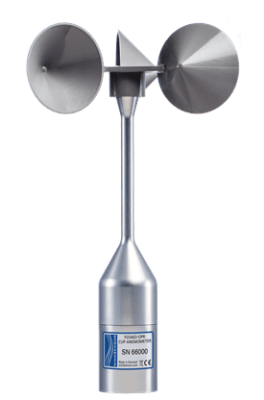

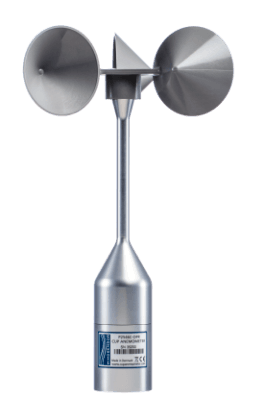

P2546A-L Three-Cup Anemometer with MEASNET Calibration

The P2546A, manufactured by WINDSENSOR, is a Class 1 anemometer used in wind-energy applications. Wind speed is sensed by a three-cup rotor assembly. Magnets mounted...

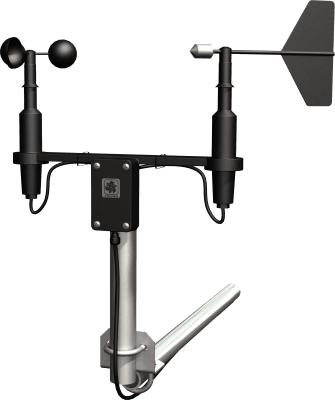

03002-L Wind Sentry Set

The 03002, manufactured by R. M. Young, measures wind speed and direction with a 3-cup anemometer and a wind vane mounted on a small crossarm....

034B-L Wind Set

The 034B, manufactured by Met One, combines a 3-cup anemometer and vane into a single integrated package to measure wind speed and direction. It is...

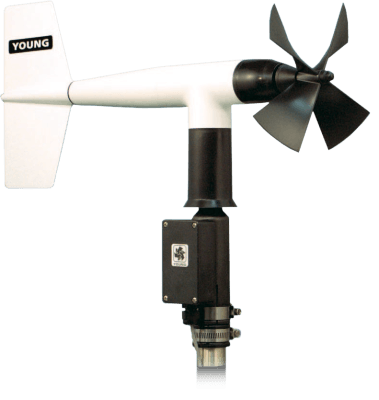

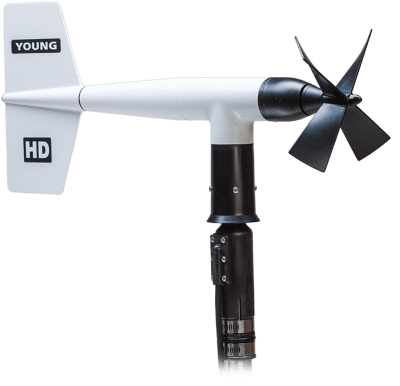

05103-L Wind Monitor

The 05103 Wind Monitor is a light-weight, sturdy instrument for measuring wind speed and direction in harsh environments. Its simplicity and corrosion-resistant construction make it...

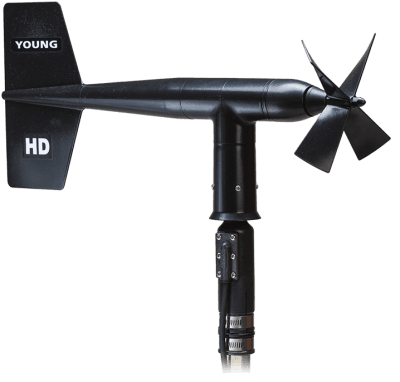

05103-45-L Wind Monitor, Alpine Version

The 05103-45 Wind Monitor is a lightweight instrument that measures wind speed and wind direction. It is designed to prevent ice buildup. allowing the sensor...

05106-L Marine Wind Monitor

Designed for offshore and marine applications, the 05106 is a lightweight, robust instrument that measures wind speed and direction. Manufactured by R. M. Young, this...

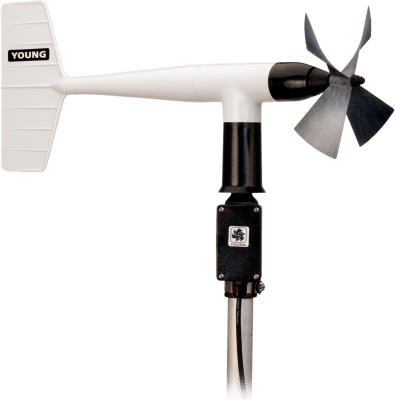

05305-L Air Quality Wind Monitor

The 05305 is a lightweight, high-performance wind-speed and wind-direction sensor designed specifically for air-quality measurements. It is more responsive but less rugged than the other...

WINDSONIC1-L 2-D Sonic Wind Sensor with RS-232 Output

The WindSonic1 is a two-dimensional ultrasonic anemometer for measuring wind direction and speed. It provides an alternative to traditional mechanical cup and vane or propeller...

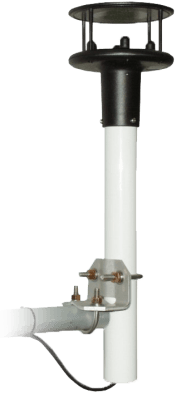

WINDSONIC4-L 2-D Sonic Wind Sensor with SDI-12 Output

The WindSonic4 is a two-dimensional ultrasonic anemometer for measuring wind direction and speed. It provides an alternative to traditional mechanical cup and vane or propeller...

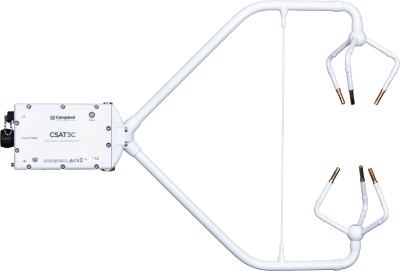

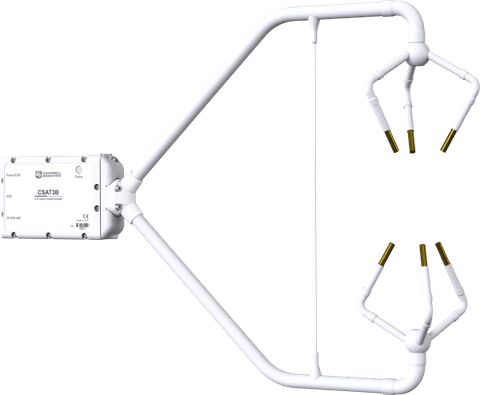

CSAT3 3-D Sonic Anemometer

The CSAT3 is a three-dimensional sonic anemometer that measures three orthogonal wind components and the speed of sound. In eddy covariance systems, it can measure...

CSAT3A 3-D Sonic Anemometer, Head Only

The CSAT3A sonic anemometer head is similar to the sensor head from the CSAT3 sonic anemometer, but its cable is modified to connect to the...

ZEPHIR300 Remote Sensing Wind Measurement Lidar

The ZephIR 300 is a continuous-wave (CW) lidar system that provides remote wind measurements across ten user-defined heights from 10 m to 300 m. It...

020C-L Wind Direction Sensor

The 020C, manufactured by Met One, measures wind direction with research-grade accuracy and precision. The 020C is commonly used with the WMS100 for wind-farm power...

FAQs

If the cable attached to a sensor is too short, can more cable be spliced to the existing cable to make it longer?

Whenever possible, purchase a sensor with the desired cable length. Some sensors have a user-specified cable length, whereas other sensors have a set cable length.

Sometimes, an old cable can be replaced with a new, longer cable.

Generally, additional cable cannot be spliced onto the existing cable because:

  • Some sensor cables have bridge completion resistors at the pigtail end
  • Some sensors are calibrated based on cable length
  • Sometimes the color in the insulation is not the same as that visible at the pigtail end
  • It is possible to introduce errors or malfunctions depending on the integrity of the splice

Splicing cable together increases the likelihood that water may enter the cable and cause shorting, corrosion, and some other potential issues, which in turn can cause measurement issues.

Because of the potential issues, do not splice any sensor cable without first contacting an application engineer at Campbell Scientific to discuss the sensor in detail.

Can a sensor cable be shortened?

Sometimes, an old cable can be replaced with a new, shorter cable.

Sometimes, an existing cable can be shortened by cutting the ends off. However, there are a few issues that could be encountered when doing this:

  • Some sensors have bridge completion resistors at the pigtail end.
  • Some sensors are calibrated to length.
  • Sometimes the color in the insulation may not be the same as that visible at the pigtail end.

Because of the potential issues, do not cut the ends off any sensor cable without first contacting an application engineer at Campbell Scientific to discuss the sensor in detail.

Can a sensor cable be replaced?

Many times, but not always, a sensor’s cable can be replaced with a new cable. This is helpful if the original cable was damaged or if its length needs to be changed.

If the cable is attached to the sensor using a connector, Campbell Scientific will sell a replacement cable. For example, a 05106CBL-L is a replacement cable for a 05106-L. Replacement cables are listed in the “Replacement Parts” section of the Ordering tab of the product page.

If the cable is attached to a sensor through a user-accessible terminal block, a raw cable can be purchased to replace it. For example, to replace the cable on a 05103-L Wind Monitor, order the desired length of pn 972124 AWG 3 Twisted Pair Shielded Santoprene® Cable. As another example, the raw cable for a TE525-L Rain Gage is pn 966122 AWG 1 Twisted Pair Shielded Santoprene® Cable.

If the cable is an integral part of the sensor, the cable cannot be user replaced, and the sensor must be returned to Campbell Scientific. Some examples of sensors that fall into this category include the 107-L, 109SS-L, 229-L, CS547A-L, and CS650-L. For the process of returning equipment to Campbell Scientific, refer to the Repair and Calibration page.

Does every sensor come with a calibration sheet?

Not every sensor comes with a calibration sheet. If a calibration sheet is included, it is listed in the “Ships With” section of the sensor’s product web page or it is specified when ordered.

What are the different cable length choices available for Campbell Scientific sensors?

Most Campbell Scientific sensors are available as an –L, which indicates a user-specified cable length. If a sensor is listed as an –LX model (where “X” is some other character), that sensor’s cable has a user-specified length, but it terminates with a specific connector for a unique system:

  • An –LC model has a user-specified cable length for connection to an ET107, CS110, or retired Metdata1.
  • An –LQ model has a user-specified cable length for connection to a RAWS-P weather station.

If a sensor does not have an –L or other –LX designation after the main model number, the sensor has a set cable length. The cable length is listed at the end of the Description field on the product’s Ordering tab. For example, the 034B-ET model has a description of “Met One Wind Set for ET Station, 67 inch Cable.” Products with a set cable length terminate, as a default, with pigtails.

If a cable terminates with a special connector for a unique system, the end of the model number designates which system. For example, the 034B-ET model designates the sensor as a 034B for an ET107 system.

  • –ET models terminate with the connector for an ET107 weather station.
  • –ETM models terminate with the connector for an ET107 weather station, but they also include a special system mounting, which is often convenient when purchasing a replacement part.
  • –QD models terminate with the connector for a RAWS-F Quick Deployment Station.
  • –PW models terminate with the connector for a PWENC or pre-wired system.
What are the different cable termination options available for Campbell Scientific sensors?

Many Campbell Scientific sensors are available with different cable termination options. These options include the following:

  • The –PT (–PT w/Tinned Wires) option is the default option and does not display on the product line as the other options do. The cable terminates in pigtails that connect directly to a datalogger.
  • In the –C (–C w/ET/CS110 Connector) option, the cable terminates in a connector that attaches to a CS110 Electric Field Meter or an ET-series weather station.
  • In the –CWS (–CWS w/CWS900 Connector) option, the cable terminates in a connector that attaches to a CWS900-series interface. Connection to a CWS900-series interface allows the sensor to be used in a wireless sensor network.
  • In the –PW (–PW w/Pre-Wire Connector) option, the cable terminates in a connector that attaches to a prewired enclosure.
  • In the –RQ (–RQ w/RAWS Connector) option, the cable terminates in a connector that attaches to a RAWS-P Permanent Remote Automated Weather Station.

Note: The availability of cable termination options varies by sensor. For example, sensors may have none, two, or several options to choose from. If a desired option is not listed for a specific sensor, contact an application engineer at Campbell Scientific for assistance.

Where are the available cable termination options listed for a particular sensor?

Not every sensor has different cable termination options. The options available for a particular sensor can be checked by looking in two places on the Ordering tab of the sensor product page:

  • Model number
  • Cable Termination Options list

If a sensor is offered in an –ET, –ETM, –LC, –LQ, or –QD version, that option’s availability is reflected in the sensor model number. For example, the 034B is offered as the 034B-ET, 034B-ETM, 034B-LC, 034B-LQ, and 034B-QD.

All of the other cable termination options, if available, are listed on the Ordering tab of the sensor product page under “Cable Termination Options.” For example, the 034B-L Wind Set is offered with the –CWS, –PT, and –PW options, as shown on the Ordering tab of the 034B-L product page.

Note: As newer products are added to our inventory, typically, we will list multiple cable termination options under a single sensor model rather than creating multiple model numbers. For example, the HC2S3-L has a –C cable termination option for connecting it to a CS110 instead of offering an HC2S3-LC model.

Resources and Links

About Wind Speed and Wind Direction

Campbell Scientific offers a selection of quality wind sensors. Our wind sensors are used in research, air quality, and general purpose meteorological applications. Anemometer only versions of some wind sensors are offered for customers who wish to measure wind speed or wind run only. Most of the wind sensors available directly from Campbell Scientific are modified slightly from the manufacturer's stock items for use with our dataloggers.

Most Campbell Scientific dataloggers contain the Wind Vector instruction to integrate measurements of wind speed and wind direction into processed outputs such as mean horizontal wind speed, unit vector mean wind direction, standard deviation of wind direction, resultant mean horizontal wind speed, and resultant mean wind direction. Standard deviation of wind speed can be calculated using the Yamartino algorithm or a Campbell Scientific algorithm.

Home \ Products \ Components \ Sensors \ Wind Speed and Wind Direction
