CS300-L Pyranometer

The CS300, manufactured by Apogee Instruments, measures total sun and sky solar radiation for solar, agricultural, meteorological, and hydrological applications. Its spectral range of 300...

LI200X-L Silicon Pyranometer with Fixed Daylight Calibration

The LI200X, manufactured by LI-COR, is a pyranometer that monitors sun plus sky radiation. It connects directly to our dataloggers, and is used extensively in...

LP02-L Pyranometer

The LP02, manufactured by Hukseflux, is an ISO-second-class pyranometer that monitors solar radiation for the full solar spectrum range. It connects directly to a Campbell...

CMP3-L Pyranometer with Sun Shield

The CMP3, manufactured by Kipp & Zonen, is an ISO-second-class pyranometer that monitors solar radiation for the full solar spectrum range. It connects directly to...

CMP6-L Pyranometer

The CMP6, manufactured by Kipp & Zonen, is an ISO first-class pyranometer that monitors solar radiation for the full solar spectrum range. It connects directly...

CMP11-L Pyranometer

The CMP11, manufactured by Kipp & Zonen, is an ISO secondary-standard pyranometer that monitors solar radiation for the full solar spectrum range. It connects directly...

CMP21-L Pyranometer

The CMP21, manufactured by Kipp & Zonen, is an ISO secondary-standard pyranometer with an internal thermistor. It monitors solar radiation for the full solar spectrum...

LI190SB-L Quantum Sensor

The LI190SB, manufactured by LI-COR, is a quantum sensor that accurately monitors Photosynthetic Photon Flux Density (PPFD) in both natural and artificial light. It connects...

NR-LITE2-L Net Radiometer

The NR-LITE2 is a rugged net radiometer that measures the energy balance between incoming short-wave and long-wave infrared radiation relative to surface-reflected short-wave and outgoing...

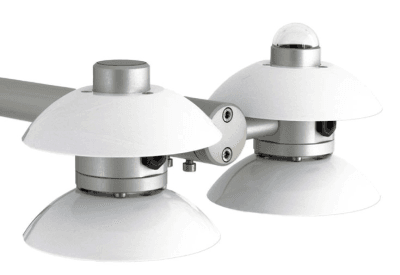

NR01-L 4-Component Net Radiometer

The NR01, manufactured by Hukseflux, is a research-grade net radiometer that measures the energy balance between incoming short-wave and long-wave infrared radiation versus surface-reflected short-wave...

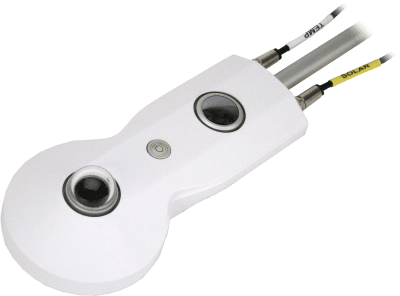

CNR4-L 4-Component Net Radiometer

The CNR4, manufactured by Kipp & Zonen, is a research-grade net radiometer that measures the energy balance between incoming and outgoing radiation. Our dataloggers measure...

CHP1-L Pyrheliometer

The CHP1-L, manufactured by Kipp & Zonen, is a pyrheliometer used for unattended direct solar-radiation measurement. It is designed specifically to measure the direct beam...

FAQs

If the cable attached to a sensor is too short, can more cable be spliced to the existing cable to make it longer?

Whenever possible, purchase a sensor with the desired cable length. Some sensors have a user-specified cable length, whereas other sensors have a set cable length.

Sometimes, an old cable can be replaced with a new, longer cable.

Generally, additional cable cannot be spliced onto the existing cable because:

  • Some sensor cables have bridge completion resistors at the pigtail end
  • Some sensors are calibrated based on cable length
  • Sometimes the color in the insulation is not the same as that visible at the pigtail end
  • It is possible to introduce errors or malfunctions depending on the integrity of the splice

Splicing cable together increases the likelihood that water may enter the cable and cause shorting, corrosion, and some other potential issues, which in turn can cause measurement issues.

Because of the potential issues, do not splice any sensor cable without first contacting an application engineer at Campbell Scientific to discuss the sensor in detail.

Can a sensor cable be shortened?

Sometimes, an old cable can be replaced with a new, shorter cable.

Sometimes, an existing cable can be shortened by cutting the ends off. However, there are a few issues that could be encountered when doing this:

  • Some sensors have bridge completion resistors at the pigtail end.
  • Some sensors are calibrated to length.
  • Sometimes the color in the insulation may not be the same as that visible at the pigtail end.

Because of the potential issues, do not cut the ends off any sensor cable without first contacting an application engineer at Campbell Scientific to discuss the sensor in detail.

Can a sensor cable be replaced?

Many times, but not always, a sensor’s cable can be replaced with a new cable. This is helpful if the original cable was damaged or if its length needs to be changed.

If the cable is attached to the sensor using a connector, Campbell Scientific will sell a replacement cable. For example, a 05106CBL-L is a replacement cable for a 05106-L. Replacement cables are listed in the “Replacement Parts” section of the Ordering tab of the product page.

If the cable is attached to a sensor through a user-accessible terminal block, a raw cable can be purchased to replace it. For example, to replace the cable on a 05103-L Wind Monitor, order the desired length of pn 972124 AWG 3 Twisted Pair Shielded Santoprene® Cable. As another example, the raw cable for a TE525-L Rain Gage is pn 966122 AWG 1 Twisted Pair Shielded Santoprene® Cable.

If the cable is an integral part of the sensor, the cable cannot be user replaced, and the sensor must be returned to Campbell Scientific. Some examples of sensors that fall into this category include the 107-L, 109SS-L, 229-L, CS547A-L, and CS650-L. For the process of returning equipment to Campbell Scientific, refer to the Repair and Calibration page.

Does every sensor come with a calibration sheet?

Not every sensor comes with a calibration sheet. If a calibration sheet is included, it is listed in the “Ships With” section of the sensor’s product web page or it is specified when ordered.

What are the different cable length choices available for Campbell Scientific sensors?

Most Campbell Scientific sensors are available as an –L, which indicates a user-specified cable length. If a sensor is listed as an –LX model (where “X” is some other character), that sensor’s cable has a user-specified length, but it terminates with a specific connector for a unique system:

  • An –LC model has a user-specified cable length for connection to an ET107, CS110, or retired Metdata1.
  • An –LQ model has a user-specified cable length for connection to a RAWS-P weather station.

If a sensor does not have an –L or other –LX designation after the main model number, the sensor has a set cable length. The cable length is listed at the end of the Description field on the product’s Ordering tab. For example, the 034B-ET model has a description of “Met One Wind Set for ET Station, 67 inch Cable.” Products with a set cable length terminate, as a default, with pigtails.

If a cable terminates with a special connector for a unique system, the end of the model number designates which system. For example, the 034B-ET model designates the sensor as a 034B for an ET107 system.

  • –ET models terminate with the connector for an ET107 weather station.
  • –ETM models terminate with the connector for an ET107 weather station, but they also include a special system mounting, which is often convenient when purchasing a replacement part.
  • –QD models terminate with the connector for a RAWS-F Quick Deployment Station.
  • –PW models terminate with the connector for a PWENC or pre-wired system.
What are the different cable termination options available for Campbell Scientific sensors?

Many Campbell Scientific sensors are available with different cable termination options. These options include the following:

  • The –PT (–PT w/Tinned Wires) option is the default option and does not display on the product line as the other options do. The cable terminates in pigtails that connect directly to a datalogger.
  • In the –C (–C w/ET/CS110 Connector) option, the cable terminates in a connector that attaches to a CS110 Electric Field Meter or an ET-series weather station.
  • In the –CWS (–CWS w/CWS900 Connector) option, the cable terminates in a connector that attaches to a CWS900-series interface. Connection to a CWS900-series interface allows the sensor to be used in a wireless sensor network.
  • In the –PW (–PW w/Pre-Wire Connector) option, the cable terminates in a connector that attaches to a prewired enclosure.
  • In the –RQ (–RQ w/RAWS Connector) option, the cable terminates in a connector that attaches to a RAWS-P Permanent Remote Automated Weather Station.

Note: The availability of cable termination options varies by sensor. For example, sensors may have none, two, or several options to choose from. If a desired option is not listed for a specific sensor, contact an application engineer at Campbell Scientific for assistance.

Where are the available cable termination options listed for a particular sensor?

Not every sensor has different cable termination options. The options available for a particular sensor can be checked by looking in two places on the Ordering tab of the sensor product page:

  • Model number
  • Cable Termination Options list

If a sensor is offered in an –ET, –ETM, –LC, –LQ, or –QD version, that option’s availability is reflected in the sensor model number. For example, the 034B is offered as the 034B-ET, 034B-ETM, 034B-LC, 034B-LQ, and 034B-QD.

All of the other cable termination options, if available, are listed on the Ordering tab of the sensor product page under “Cable Termination Options.” For example, the 034B-L Wind Set is offered with the –CWS, –PT, and –PW options, as shown on the Ordering tab of the 034B-L product page.

Note: As newer products are added to our inventory, typically, we will list multiple cable termination options under a single sensor model rather than creating multiple model numbers. For example, the HC2S3-L has a –C cable termination option for connecting it to a CS110 instead of offering an HC2S3-LC model.

Resources and Links

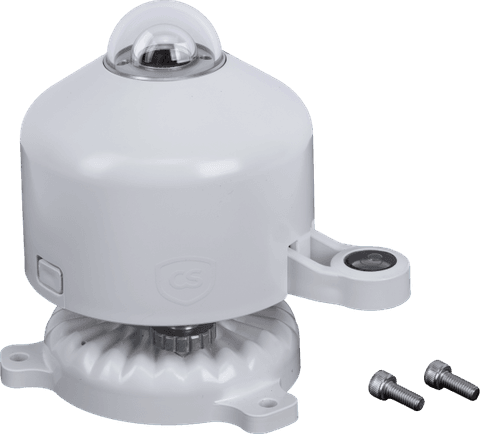

About Solar Radiation Sensors

Campbell Scientific offers pyranometers, net radiometers, and quantum sensors, all designed to measure various aspects of the energy imparted by the sun on the Earth's surface.

A leveling fixture fitted with a bubble level may be required to accurately install solar radiation sensors. For solar radiation sensor mounts and leveling fixtures, see Tripods, Towers, and Mounts.

Home \ Products \ Components \ Sensors \ Solar Radiation Sensors
