| Services Available | |
|---|---|
| Repair | No |
| Calibration | No |
| Free Support | No |
Overview

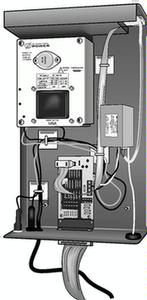

The RF232A serves as a link to field stations and repeaters at the base station for RF300-series radios. The RF232A includes a 110/220 Vac-to-12 Vdc transformer, an RF95A modem, an RS-232 port, internal mounts for an RF300-series radio, and a 7026 cable.
Read MoreImages
Similar Products
Detailed Description
The RF232A is used with our RF300-series radios. It resides at the base station computer, and serves as a link to field stations and repeaters. The RF232A includes a 110/220 Vac-to-12 Vdc transformer, an RF95A modem, an RS-232 port, internal mounts for an RF300-series radio, and a 7026 cable.
An RF300-series radio, antenna cable, and frequency-matched antenna are purchased separately. Access to ac power is required. The RF232A is intended for desktop operation; no mounts are required or supplied.
Specifications
| Connection | 25-pin RS-232 port (for connection to PC) |
| Operating Temperature | -25° to +50°C |
| Weight | 2.86 kg (6.3 lb) without radio |
Compatibility
Note: The following shows notable compatibility information. It is not a comprehensive list of all compatible or incompatible products.
Data Loggers
| Product | Compatible | Note |
|---|---|---|
| 21X (retired) | ||
| CR10 (retired) | ||
| CR1000 (retired) | ||
| CR10X (retired) | ||
| CR200X (retired) | ||
| CR206X (retired) | ||
| CR211X (retired) | ||
| CR216X (retired) | ||
| CR23X (retired) | ||
| CR295X (retired) | ||
| CR3000 (retired) | ||
| CR500 (retired) | ||
| CR5000 (retired) | ||
| CR510 (retired) | ||
| CR800 (retired) | ||
| CR850 (retired) | ||
| CR9000 (retired) | ||
| CR9000X (retired) |
Communication Devices
| Product | Compatible | Note |
|---|---|---|
| RF100 (retired) | ||
| RF200 (retired) | ||
| RF300 (retired) | ||
| RF301 (retired) | ||
| RF302 (retired) | ||
| RF303 (retired) | ||
| RF304 (retired) | ||
| RF500M | ||
| RF95 (retired) | ||
| RF95A (retired) |
Additional Compatibility Information
Computer
Computer must be IBM-PC compatible with an RS-232 serial port.
Radios, Radio Modems, and Radio Base Stations
The RF232A is backward compatible with existing RF systems and DRL RF systems; it is NOT compatible with RF310-series radios.
If RF232A modems are used in a network containing RF500M modems or RF500B base stations then the RF232A modems must use the -TD PROM; the data loggers must also be PakBus (-PB) versions.
