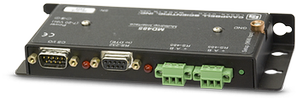

MD485

Support Information

Measurement and Control Products for WEATHER

Measurement and Control Products for WATER

Measurement and Control Products for ENERGY

Measurement and Control Products for MACHINES

Measurement and Control Products for STRUCTURES

Measurement and Control Products for EARTH

Increases Communication Options
Adds data link possibilities among dataloggers, PCs, and sensors

Request a Quote

Ask a Question

Overview

Specifications

Compatibility

Ordering

Support

Image Gallery

Sections: Videos & Tutorials, Downloads, FAQs

General Support

User Forum

Visit the Campbell Scientific Forum to submit your question to users around the world.

Ask an Expert

Ask a Question using our simple form and we'll pass it along to one of our experts.

Call Us

Our technical support experts are ready to answer your questions. Our support numbers are:

Orders	435.227.9090 435.227.9091 (fax)
Technical Support	435.227.9100
US Sales	435.227.9120
International Sales	435.227.9140
Accounts Receivable	435.227.9092
Repairs	435.227.9105
Main	435.227.9000 435.227.9001 (fax)

Downloads

Device Configuration Utility v.2.04 (37.2 MB) Add to List

A software utility used to download operating systems and set up Campbell Scientific hardware. Device Configuration Utility supports the following Campbell Scientific products: AL200, AVW200, CC5MPX, CC640, CD295, CDM-VW300, COM220, COM320, CR10X, CR10X-PB, CR10X-TD, CR23X, CR23X-PB, CR23X-TD, CR2xx, CR510, CR510-PB, CR510-TD, CR800, CR1000, CR3000, CR5000, CR9000X, CRS45x, CS120, CS450, CS45x, CS650, CWB100, CWS220, CWS655, CWS900, EC100, MD485, NL1xx, NL200, NL240, OBS500, PS200/CH200, RF4xx, RF500M, SC105, SC115, SC-CPI, SDM-CAN, SDM-SI01, SMxM, TGA100A and TX320.

View Revision History

MD485 OS v.05 (583 KB) Add to List

Current MD485 operating system. Requires the Device Configuration Utility.

View Revision History

FAQ

Is it possible to connect the CR800, CR850, CR1000, or CR3000 to a SCADA system through a Modbus RS-485 protocol?

Yes, using a MD485 modem.

How can a CR1000 be connected to a device that uses Modbus RTU over RS-485?

Several serial converters exist that serve this purpose. The recommended device to use is the MD485.

What is the best way to download data simultaneously from a remote CR1000 and CR3000 via a cell modem?

If both dataloggers are using the same cell modem, then simultaneous connection and download is not possible. To resolve this, first create a local network, such as by direct connection, RF4xx radios, an MD485, or Ethernet. Then use the cell modem to access the network.

How long can the cables be between networked dataloggers?

The maximum cable length depends on the interface being used. RS-232 connections will reach 15 m (50 ft). RS-485 connections go beyond 610 m (2,000 ft). IP connections can be routed worldwide.

Is using Ethernet the best option to connect a CR800 to a PC that is 500 to 700 feet away?

Since the maximum recommended length of CAT5 Internet cable is 330 ft from a hub or panel, a better option would be to use the MD485 modem. This modem uses a twisted pair cable for communication. Cable lengths can be as long as 4,000 ft.
