Innovative Design
Use as part of open-path eddy-covariance systems or as stand-alone IRGA





Image Gallery
EC150 Pricing Details
Educational Discounts: Yes    Quantity Discounts: Yes    Restockable: Yes    Warranty: 1 year
Model Description

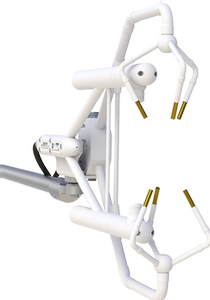

EC150 CO2/H2O Open-Path Gas Analyzer System
Sensing Head Options (hide details)
-GH -GH Gas Analyzer Only
Choose this option to get an instrument that only measures absolute carbon dioxide and water vapor densities, air temperature, and barometric pressure.
-SH -SH CSAT3A & Gas Analyzer
Sonic Carrying Case Opt (hide details)
-NC -NC No Sonic Case
Choose this option if you do not want a carrying case for your sonic anemometer.
-SC -SC Sonic Carrying Case
Choose this option if you want a carrying case for your sonic anemometer.
Pressure Sensor Options (hide details)
-BB -BB Basic Barometer
Choose this option to get a barometer with a total accuracy of ±2.2 kPa (0° to +85°C).
-EB -EB Enhanced Barometer
Choose this option to get a barometer with a total accuracy of ±0.85 kPa (0° to +60°C).
EC150 Carrying Case Opt (hide details)
-NG -NG No EC150 Case
-GC -GC EC150 Carrying Case
The rigid carrying case holds the gas analyze.
Common Accessories
1. CABLEPCBL-L 2-Conductor 16AWG Power Cable
This 16-AWG, two-conductor cable with a Santoprene® jacket is used to power the EC150.
CABLEPCBL-L Options
-L ft per cable
Cable Termination Options
-PT -PT w/Tinned Wires
-PW -PW w/Pre-Wire Connector
2. CABLE4CBL-L 4-Conductor 22AWG Cable w/Drain
This 4-conductor, 22-AWG cable with drain wire and Santoprene jacket is used to attach the SDM connector on the EC150 electronics box.
CABLE4CBL-L Options
-L ft per cable
Cable Termination Options
-PT -PT w/Tinned Wires
-PW -PW w/Pre-Wire Connector
3. 26390 IRGASON & EC150 Zero & Span Shroud Kit
The 26390 is a zero and span shroud kit. A zero and span should be done when ambient conditions change significantly (i.e., seasonally).
4. 27278 IRGASON & EC150 Lab Stand Kit
The 27278 is a lab stand kit for the EC150.
5. 18442 CRBasic Basic Eddy Covariance Program
The 18442 provides a library of CRBasic programs used for a basic eddy covariance system.
6. 18443 CRBasic Extended Eddy Covariance Program
The 18443 provides a library of CRBasic programs used for an extended eddy covariance system (with energy balance sensors).
Other Accessories
1. CABLE2TP-L 2 Twisted Pair 22AWG Cable w/Drain
This cable is needed to connect the Analog Output on the EC150 electronics box if using analog output rather than SDM. It is a two-twisted pair, 22 AWG cable with drain wire and Santoprene jacket.
CABLE2TP-L Options
-L ft per cable
Cable Termination Options
-PT -PT w/Tinned Wires
-PW -PW w/Pre-Wire Connector
2. CABLE3TP-L 3 Twisted Pair 24AWG Cable w/Drain
This cable is needed to connect the EC150 with an MD485 RS-485 multidrop interface if using RS-485 (<500 ft length) rather than SDM. It is a three-twisted pair, 24 AWG cable with drain wire and a Santoprene jacket.
CABLE3TP-L Options
-L ft per cable
Cable Termination Options
-PT -PT w/Tinned Wires
-PW -PW w/Pre-Wire Connector
Replacement Parts
1. 26510 IRGASON & EC150 Chemical Bottles
The 26510 is the chemical bottles assembly provided with the EC150. Two bottles are included.
2. 27114 CSAT3A Replacement Sonic Head
This sonic anemometer head is similar to the sensor head from the CSAT3 sonic anemometer, but its cable is modified to connect to the EC100 electronics.
3. 28902 Sonic Wicks Spares Kit
The sonic wick spares kit is used to replace wicks on a CSAT3, CSAT3A, or IRGASON. It includes three top wicks, three bottom wicks, an installation tool, and some adhesive.
4. 4905 Desiccant 4 Unit Bag
The 4905 Single 4-Unit Silica Desiccant Bag is used to desiccate the EC150's enclosure. It needs to be periodically replaced.
5. 3768 2-Pin Screw Terminal Plug Connector .2 inch pitch Straight Wire Entry 12-24 AWG Green Marked G 12V
This green, plug-in power connector provides screw terminals for connecting the 12 V and GND wires.
6. 28652 IRGASON or EC150 Replacement Rain Wick Bottom
This wick can be placed on the bottom snout of the gas analyzer to help wick away rain droplets from the optical window. Recommended for sites with frequent rain.
7. 28653 IRGASON or EC150 Replacement Rain Wick Top
This wick can be placed on the top snout of the gas analyzer to help wick away rain droplets from the optical window. Recommended for sites with frequent rain.
8. EC100-EB Replacement Gas Analyzer Electronics w/Enclosure & Enhanced Barometer
The EC100-EB includes the EC150 electronics box and a Campbell Scientific CS106 barometer mounted inside of the electronics box.
9. CM250 Leveling Mounting Kit
The CM250 is a leveling mount kit for attaching the EC150 to a crossarm.
Services
1. 27311 EC150 Recalibration w/Zero & Span
The 27311 provides a recalibration with zero and span. When drift between zero and span checks seems unstable, or when diagnostic output indicates a problem, the instrument should be sent in for a full factory calibration with zero and span. An RMA is required.
2. 27312 EC150 & IRGASON Zero & Span
A zero and span should be done when ambient conditions change significantly (i.e., seasonally). If the user does not have a zero/span kit to do this himself/herself, it can be sent in to Campbell Scientific. An RMA is required.

Resources and Links

Ships With

(1) EC150 Packing Information Sheet

(1) 26787 EC150 Foam Insert

(2) 17492 U-bolt (5/16") and Matching Nuts

(1) 4905 Desiccant, 4-unit bag

(1) EC150 Certificate of Conformance

(2) 17446 U-bolt (5/16") and Matching Nuts

(1) 41303-5A 6-Plate Solar Radiation Shield

(1) 26563 USB-to-USB Cable, 4.5 m

(1) CM250 EC150 Boom

(1) 27007 EC150 Support CD

(12) 2207 4 inch Nylon Cable Tie

(1) 26520 Special Temperature Probe with 10 ft cable

(1) 8125 Flat-bladed Screwdriver

Shipping Weights & Dims

Single Box Shipping Weight: 55 lb

Single Box Shipping Dimensions:
32 x 26 x 17 in.
