This product is no longer available and has been replaced by: CR9051E.
| Services Available | |
|---|---|
| Repair | No |
| Calibration | No |
| Free Support | No |
Overview
The CR9050 is one of the modules used with our CR9000 and CR9000X dataloggers. It includes 14 differential (28 single-ended) inputs. It also has an onboard platinum resistive thermometer (PRT) and a heavy copper grounding bar for precise thermocouple measurements.
Read MoreBenefits and Features
- Can be added to or removed from CR9000X to support changing measurement needs
- Very sensitive resolution: down to 1.6 microvolts
Images
Detailed Description

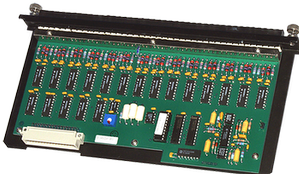

The CR9050 is an I/O module for the CR9000X-series and CR9000-series dataloggers. It includes 14 differential (28 single-ended) analog input channels that measure voltages up to ±5 V and an internal PRT that provide a reference temperature for thermocouple measurements. The CR9050's heavy copper grounding bar and connectors, as well as its case design reduce temperature gradients, which promotes accurate thermocouple measurements. Resolution on the most sensitive range is 1.6 microvolts.
All input wires attach to the CR9050 via screw terminals.
Specifications
| -NOTE- | Note: Additional specifications are listed in the CR9000X(C) Specifications Sheet. |
| Analog Channels | 28 single-ended (14 differential) |
| Analog Voltage Range | ±5000 mV |
| Analog Voltage Accuracy |
±(0.07% of reading + 4 A/D counts) -25° to +50°C |
| Measurement Resolution | To 1.6 μV |
| Current Drain | 25 mA (active) |
| Standard Operating Temperature Range | -25° to +50°C |
| Extended Operating Temperature Range | -40° to +70°C |
| Dimensions | 24.1 x 2.5 x 12.7 cm (9.5 x 1.0 x 5.0 in.) |
| Weight | 547 g (1.2 lb) |
Compatibility
Note: The following shows notable compatibility information. It is not a comprehensive list of all compatible or incompatible products.
Data Loggers
| Product | Compatible | Note |
|---|---|---|
| 21X (retired) | ||
| CR10 (retired) | ||
| CR1000 (retired) | ||
| CR10X (retired) | ||
| CR200X (retired) | ||
| CR206X (retired) | ||
| CR211X (retired) | ||
| CR216X (retired) | ||
| CR23X (retired) | ||
| CR295X (retired) | ||
| CR3000 (retired) | ||
| CR500 (retired) | ||
| CR5000 (retired) | ||
| CR510 (retired) | ||
| CR800 (retired) | ||
| CR850 (retired) | ||
| CR9000 (retired) | ||
| CR9000X (retired) |
