This product is no longer available and has been replaced by: CR9000X. Some accessories, replacement parts, or services may still be available.

Technical Description

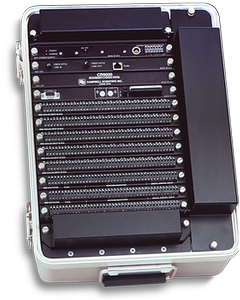

The CR9000 was a modular, multiprocessor system that provided precision measurement capabilities in a rugged battery-operated package. Its Base System included a CR9031 CPU module, CR9041 A/D module, CR9011 power supply module, 2 Mbytes SRAM memory, 2 Mbytes Flash Memory, power supply module, and PC9000 Support Software for Windows. The on-board, BASIC-like programming language included data processing and analysis algorithms. Up to nine I/O modules (purchased separately) could be inserted into a CR9000 to configure a system for specific applications.

Connection to a PC was accomplished via Ethernet, TLink fiber optic, parallel port, or serial interface using peripheral products.

The CR9000's internal battery had a 14 Ahr capacity per charge. Maximum operating current was 1 Amp from an unregulated 12 V supply.

CR9000 Specifications

  • A/D bits: 16
  • Scan Rate: 4.5 kHz
  • Burst mode: 100 kHz
  • PC cards: Type I, II, or III
  • The number of analog inputs, pulse counters, switched voltage excitations, switched current excitations, digital I/O ports, and continuous analog outputs are determined based on the card configuration used.

Resources and Links

Ships With

(*) Operator's Manual

(1) 1113 Flat screwdriver

(1) 8989 Transformer w/power cord

(1) PC9000 Support software

*Ships With
