Mounting Poles / CM300

Overview

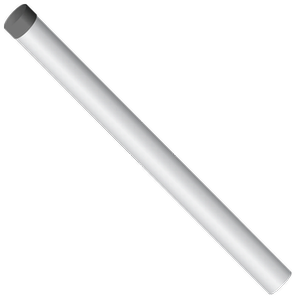

The CM300 is a 58 cm (23 in.), stainless-steel, 1.5 in. IPS vertical pole. It is designed for mounting sensors, enclosures, or other instruments, and is an ideal mount for remote sensors such as a tipping bucket rain gage or net radiometer. Our CS700, TB4, and 385 rain gages are typically mounted to the CM300 via the CM240 leveling base. This mounting pole can be embedded directly into a concrete foundation or used with a pedestal kit (see Ordering Info).

Images


Specifications

General

Material Stainless steel
Outer Diameter 4.8 cm (1.9 in.)
Pipe Size 3.81 cm (1.5 in.) IPS
Length 58 cm (23 in.)
Weight 3.2 kg (7 lb)

J-bolt Kit

J-bolt Material Stainless steel
J-bolt Size 1/2-13 in. x 12 in.

Short Leg Kit

Outer Diameter 4.8 cm (1.9 in.)
Pipe Size 3.81 cm (1.5 in.) IPS
Leg Length 58 cm (23 in.)
Pedestal Height
  • 8 cm (3 in.) top hole position
  • 20 cm (8 in.) middle hole position
  • 33 cm (13 in.) bottom hole position
Radius
  • 69 cm (27 in.) top hole position
  • 64 cm (25 in.) middle hole position
  • 56 cm (22 in.) bottom hole position

Long Leg Kit

Outer Diameter 4.8 cm (1.9 in.)
Pipe Size 3.81 in. (1.5 in.) IPS
Leg Length 99 cm (39 in.)
Pedestal Height
  • 13 cm (5 in.) top hole position
  • 38 cm (15 in.) middle hole position
  • 58 cm (23 in.) bottom hole position
Radius
  • 109 cm (43 in.) top hole position
  • 102 cm (40 in.) middle hole position
  • 86 cm (34 in.) bottom hole position

Compatibility

Pedestal Kits

Three pedestal kits are offered as options for this mounting pole (see Ordering Info).

J-Bolt Kit

The J-Bolt Kit is for permanent installations. With this kit, customers can more easily control the pole‘s placement—ensuring that the pole remains in a vertical position. J-bolts are installed in a concrete foundation using the template provided with the kit. Leveling nuts allow adjustment of the pole’s position.

Short Leg Kit

This pedestal kit is adequate for many temporary installations and for many situations where it is impractical to use a concrete foundation. The short leg kit includes three 23” legs, three metal feet, and a pedestal base. The feet can be secured to the ground by using three 17049 Grounding Spikes (purchased separately).

Long Leg Kit

The long leg kit provides more stability for locations where the feet cannot be secured (e.g., pole sitting on a roof), for extended poles, or for areas that experience high wind speeds. This kit includes three 39” legs, three metal feet, and a pedestal base. The feet can be secured to the ground by using three 17049 Grounding Spikes (purchased separately).
