This product is no longer available.
| Services Available | |
|---|---|
| Repair | No |
| Free Support | Yes |
Overview
You can control up to 12 external ac or dc devices using the six internal relays of the A6REL-12. Each relay set can be controlled manually or by a data logger.
Read MoreBenefits and Features
- UL/CUL approved product

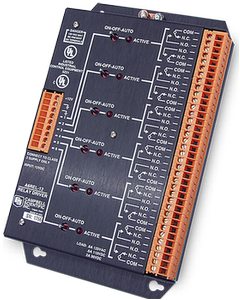

Images
Detailed Description
The A6REL-12's internal relays are dual single-pole double-throw. Each of the six relays has a three position toggle switch; "on" and "off" for manual override, and "auto" for data logger control. In the on position, the common and normally open contacts are shorted. In the auto position, the state of a relay is controlled by a data logger control port.
A6REL-12's with serial numbers 1445 and higher are UL-approved.
Specifications
| Function | Controls up to 12 external ac or dc devices. |
| Number of Channels | 6 |
| Operating Voltage | 12 Vdc nominal (8.4 to 24 Vdc) |
| Current Drain at 12 Vdc |
|
| Toggle Switch | ON/OFF manual override; AUTO for data logger control |
| Relays | dual single pole double throw, break before make |
| Contact Material | Gold-clad silver |
| Coil Resistance | 720 Ω ±10% |
| Contact Ratings |
|
| Release/Actuation Time | ~3 ms |
| Operating Temperature | -40° to +70°C |
| Standards |
|
| Dimensions | 22.4 x 13.9 x 4.1 cm (8.8 x 5.5 x 1.6 in.) including switches and mounts |
| Weight | 635 g (1.4 lb) |
Expected Life (contact closures) |
|
| Mechanical | 108 |
| Electrical |
|
Compatibility
Note: The following shows notable compatibility information. It is not a comprehensive list of all compatible or incompatible products.
Data Loggers
| Product | Compatible | Note |
|---|---|---|
| 21X (retired) | ||
| CR10 (retired) | ||
| CR1000 (retired) | ||
| CR10X (retired) | ||
| CR200X (retired) | ||
| CR206X (retired) | ||
| CR211X (retired) | ||
| CR216X (retired) | ||
| CR23X (retired) | ||
| CR295X (retired) | ||
| CR3000 (retired) | ||
| CR500 (retired) | The CR500 has only one control port capable of providing a control signal. | |
| CR5000 (retired) | ||
| CR510 (retired) | The CR510 has only one control port capable of providing a control signal. | |
| CR800 (retired) | The CR800 has only four control ports capable of providing a control signal. | |
| CR850 (retired) | The CR850 has only four control ports capable of providing a control signal. | |
| CR9000 (retired) | ||
| CR9000X (retired) |
Mounting Equipment
| Product | Compatible | Note |
|---|---|---|
| ENC10/12 | ||
| ENC10/12R | ||
| ENC12/14 | ||
| ENC14/16 | ||
| ENC16/18 | ||
| ENC24/30 | ||
| ENC24/30S |
Additional Compatibility Information
Data Logger Considerations
Each of the six relays is controlled by a data logger control port.
Cables
| Cable(s) Used | Number of Relays Controlled |
| One CABLE3CBL-L | 1 |
| One CABLE4CBL-L | 2 |
| One CABLE5CBL-L | 3 |
| Two CABLE3CBL-L | 4 |
| One CABLE3CBL-L and one CABLE4CBL-L |
5 |
| Two CABLE4CBL-L | 6 |
Power Considerations
The A6REL-12 consumes 30 mA per active LED. The A6REL-12 may be powered by the data logger power supply (see manual for considerations with 21X) or a separate 8.4 to 24 Vdc battery. The A6REL-12 must be powered by a Class 2 device (Campbell Scientific power supplies conform to this requirement).
Enclosure Considerations
The A6REL-12 requires a non-condensing environment; a Campbell Scientific enclosure is recommended. A6REL-12's with serial numbers 1445 and higher include mounting flanges with keyhole slots that attach to the backplate of an enclosure. Grommets and screws are provided.
A6REL-12s with serial numbers 1444 and lower require the 6281 bracket kit for attachment to the backplate of Campbell enclosures.
Documents
Manuals
Frequently Asked Questions
Number of FAQs related to A6REL-12: 1
-
The following relay devices can be used with the CR800 and the CR850:
- 7321
- A6REL-12*
- A21REL-12
- LR4
- SDM-CD8S
- SDM-CD16AC
- SDM-CD16ACA
- SDM-CD16S
The CR800 and the CR850 can also be used with a wide variety of third-party relay devices.
*Because the CR800 and the CR850 only have four digital ports, they do not have the ability to switch all six of the relays on the A6REL-12.
